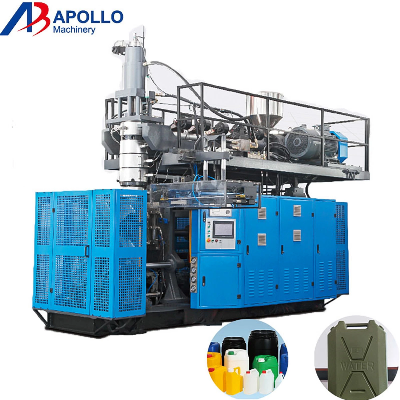

20L Plastic HDPE Jerry Can Blow Molding Machine (ABLD80)

ABLD80 extrusion blow moulding machine was specially designed for making plastic water tanks, plastic cans, lubricant oil bottles, plastic drums, plastic toys and other plastic containers not over 25L. The features of this machine: (1)It is suitable for producing PE, HDPE, PP, PVC so on, plastic containers and bottles in all shapes are available, the max. Product volume is up to 25L. (2)Single station single die head design, very easy to operate and maintenance. (3)Most components of the blow moulding machine are from famous world brand. (4)Fully automatic process with low power consumption, high efficiency, quick and safe operation, easy for maintenance. (5)Accumulation die head, MOOG parison controller equipped. (6)Bottom blow technology make the product perfect. (7)Auto lubricant system controlled by PLC. Max. Product volume30 litersOutput capacity80~120pc/hScrew diameter80mmScrew L/D ratio25 L/DScrew drive power30 KWScrew heating capacity16 KWNo.of heating zone4 zonesOutput of HDPE100 KG/HOil pump drive power22 KWClamping force210 KNMax.size of mold550X650mmMold stroke350-780mmMax.die diameter280mmDie heating power5.3 KWDie heating segments4 zonesBlowing pressure0.8mpaAir volume0.8 M³/MINCooling water pressure0.3mpaWater consumption60 L/MIN  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
