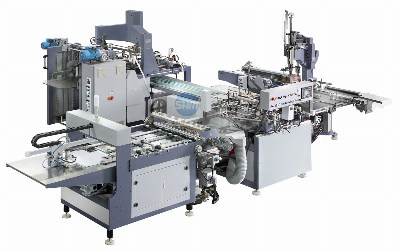

Rb420 Automatic Case Maker for Hardcover and Rigid Box

MAIN FEATURES:   1. The feeder in this machine adopts back-push feeding system, which is controlled pneumatically, and its structure is simple and reasonable.2. The width between stacker and feeding table is adjusted concentrically in the center. The operation is very easy without tolerance.3. New designed copper scraper cooperates with the roller more compactly, effectively avoiding paper winding. And the copper scraper is more durable.4. Adopt imported ultrasonic double paper tester, featuring in simple operation, which can keep two pieces paper from entering into the machine at the same time.5. Automatic circulation, mixing and gluing system for hot-melting glue. (Optional device: glue viscosity meter)6. Hot-melting paper tape automatic conveying, cutting, and finish pasting the inner box quad stayer (four angles) of cardboard in one process. 7. The vacuum suction fan under the conveyer belt can keep the paper from deviating. 8. The paper and cardboard inner box employs hydraulic rectifying device to spot correctly.9. Conveyor belt employs automatic clean system, which makes belt maintenance easy.10. The wrapper can continually wrap, fold ears and paper sides and form in one process. 11. The whole machine employs PLC, photoelectric tracking system and HMI to automatically forming boxes in one process. 12. It can automatically diagnose the troubles and alarm accordingly.     MAIN SPECIFICATIONS:     Paper sizeMax.580x800mmMin.100x200mmPaper thickness100-200g/m2Cardboard thickness1-3mmFinished product (box) sizeMax.420x300x70mmMin.100x50x10mmFolded paper size10-35mmPrecision±0.5mmProduction speedMax.35sheets/minPower10kw 380V 3phaseHeater power7.8kwAir Supply10L/min 0.6MpaWeight4500kgDimension7200x4100x2800mm   Our serviceAt SHM , you can expect satisfactory customer service with long tradition. We are highly devoted to the most optimal solid and liquid separation solutions to meet your specific needs. We have the effective service system to ensure professional and flexible management of any affairs.1.Pre-sales technical consultation2.Model selection3.Machine guidance4.Operation & maintenance training5.Maintenance service6.Quick supply of spare parts7.Customer satisfaction trackAfter-sale ServiceSHM  promises that all machines made by us come with services of repair and replacement. Machine warranty is 12 months. We provide free repair services to any failures caused by us within warranty time. However wearing parts are not included.1.Any quality failure problems happens within guarantee period, we will reply within 4 hours after receiving your request.2.SHM will provide lifelong maintenance service to all parts and regular maintenance to flatbed die cutters.3.We will handle any quality failure occurred within warranty time.4.We will provide lifelong technical support started from using of the machine.5.We will supply normal parts within warranty period to ensure better user experience. Parts supply will be charged after warranty period.FAQQ : What about the price of the machine? A:Pls contact with our sales manager to get quotation or pls send mail to us to get more information. Q:How long is the warranty of the machines ?And other Service ? A: Warranty is 12 months after the machines arrive. Our engineer can provide service overseas if you need. And we also provide installation and operation training. Q : How about your delivery time ? A:The delivery time is within 30-60 days depend on the different type or machine. Pls contact with us to learn more. Q:What`s the price term and payment method? A:We usually use Fob, CIF and CFR. Payment method : 100 % T/T (30% deposit + 70% before shipment ) OR 100% L/C. /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
