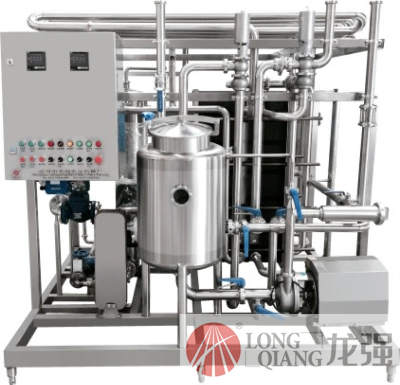

Plate Pasteurizer for Juice Milk Liquid Food

Plate PasteurizerProcess parameters (Degree Celsius): 5→65 (homogenizing) →85-65 (15S) →5.This plate pasteurizer can be connected with separator, homogenizer, flash evaporator and degasser etc.It is widely used for sterilization of fresh milk, milk beverage, juice, tea, alcohol, ice cream etc. and it also pre-sterilizes materials when producing pasteurized milk (Long life milk).Control typeFull-automatic control (PLC with touch screen) and Semi automatic PID control are both available for our plate pasteurizer.Standard attachments A Plate heat exchangerB Material-balance bucketC Hot water-balance drumD Hot water pumpE Product pumpF Steam-water mixerG Electricity cabinetH Stainless steel pipes and valves etc.I PLC and color touch screen.Production capacity: 500L-20T/HTechnical parameters of Plate PasteurizerModelCapacity (T/H)Heat exchanging areaPowerSteam Consumption  External dimensionsWeightBR16-3-0.50.555.2521200×1200×1500790kgBR16-3-1185.2601500×1500×1800880kgBR16-3-22t/h1361041800×2000×1800980kgBR26-3-33t/h2061562000×2000×22001080kgBR26-3-4-54-5t/h30-4582602250×2000×22001250kgBR26-3-6-86-8t/h35-5084002250×2000×22001250kgBR26-3-1010t/h60-115202800×2000×22001650kgBR35-3-1515t/h75157803000×2200×22002150kgBR35-3-2020t/h80189453300×2200×22002350kgNote: we can design custom equipment according to customer's request./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
