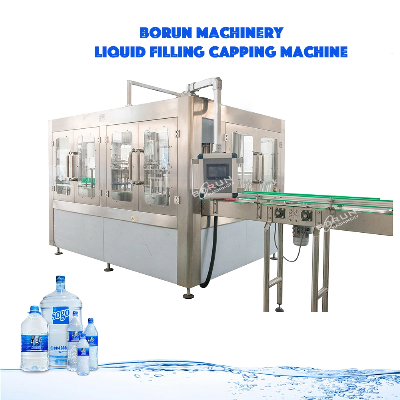

3000bph Plastic Pet Bottles Drinking Mineral Pure Water Filling Bottling Line

3000BPH Plastic PET Bottles Drinking Mineral Pure Water Filling Bottling Line Descriptions of our water filling machine: This machine is mainly used for water and non-carbonated drinks water filling capping. The machine is 3 in 1 monoblock composed of washing, filling, capping, cap unscrambler in one unit. The rinser adopts overturning device, and filling system is gravity filling type, it's more stable and reliable. The capping head we adopt Italy technology.  Technical Flow of water filling production line/ water filling machine/ water bottling line:Features of water filling machine:1. Air hanging type bottle conveying system makes changing spare parts more convenient.2. Famous SIEMENS brand PLC, and all the other electrical and pneumatic parts are world famous brand.3. Special designed stainless steel bottle gripper does not contact bottle neck thread parts, avoiding second contamination.4. Mass flow filling valve ensures high filling speed and exact filing level.5. Italy technology capping heads ensure high capping speed and capping precision.  Technical parameters:ModelCGF14-12-5CGF18-18-6CGF24-24-8CGF32-32-10CGF40-40-12CGF50-50-15Rising heads141824324050Filling heads121824324050Capping heads568101215Capacity based on 500ml PET bottle4000BPH6000BPH10000BPH12000BPH18000BPH22000BPHSuitable bottle shapePET bottles with different volume and shapesSuitable bottle diameter(mm)Φ50-115Suitable bottle height160-320mmCompressed air pressure0.3-0.7MPaWashing water pressure>0.06MPa,≤0.2MPaMotor power (KW)2.23.54.56.07.59.5Dimensions(mm)2400*1650*25002600*1920*25503100*2300*28003800*2800*29004600*2800*29005450*3300*2900Weight (KG)250035004500560085009800Main Electrical components list for water filling machine:ItemParts NameBrand1PLCSIEMENS2Inverter3Touch Screen4Switch5Contactor6Relay7Solenoid ValveAIRTAC8Water PumpSOUTHERN9SensorAUTONICS10Air componentAIRTACWater filling Machine details:Our Factory:Contact Us:Ms. Carolyn ZhouSales Manager Of Borun MachineryTel: +86 512 58682331Fax: +86 512 58682331Mobile: +86 135 8442 6116  borunmachinery.en.made-in-china.com/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
