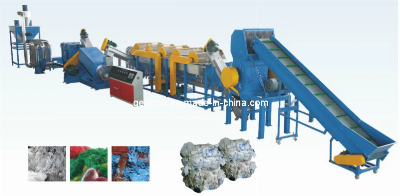

1000 Kg/H Pet Bottle Recycling Machine (Crushing & Washing & Drying) Line

1000kg/h PET Bottle Crushing & Washing Line     Depending on the state of the materials, we are able to recommend a machine with output ranging from 200-2500kg/h for your usage The Detailed parameter : 1. Conveyor Effective Conveying Length:4500mmMotor Power:1.5kwConveying Width:600mmFunction: Send the raw material to the label removing machine Label Removing Machine Diameter of rotor: Φ500mmEffective length of machine: 3000mmMotor power:15kwFeeding port size(W*L):800*800mmBlower power:4kwLabel off rate:≥98%  Sorting conveyor belt Effective transmission length:6000mmConveyor belt width:800mmMotor power:2.2kwP.S:Sorting variegated bottle, get rid off PVC and not-PET bottles. 4.Feeding conveyor belt  Motor power:3kwWidth oL the conveyer belt :800mmConveyor belt effective length:7000mmdelivery speed :10-20m/minP.S: Through the strap type conveyor to send the material into the crusher. 5PC1200 Crusher (with water)Motor power:55kwDimensions of working room:1200×560mmRotor speed:500rpmMovable blade quantity:12piecesFixed blade quantity:6 piecesBlade material:9CrSiSieve hole diameter:20mmCrushing ability:1000kg/hHave urgent overload prevent switch.P.S: Crushing the materials into small pieces through cutting of movable blades and fixed blades. Under the action of water spray , crushing produces friction to make the material finish washing preliminarily. 6.Screw feeder  Motor power:3kwScrew diameter:Φ350mmScrew rotate speed:75rpmSieve hole diameter:Φ3mmP.S: The dirth water separates in the promotion and discharges into the sewage pool from the down mouth. 7.Hot Washer×2setsStirring Motor :7.5kwBarrel diameter :Φ2000mmCylinder height:2000mmHeating power: 90kwThere is thermal insulation material around the outside wall, inside install  coil steam heating.P.S: Through adding the caustic soda(above 85ºC) into the pot body to soak and stir to make the dirt and glue of the surface of the bottle flakes separate and dissolve. 8.Screw feeder×2setsMotor power:3kwScrew diameter:Φ300mmScrew speed:75rpmP.S: Put the materials into the friction cleaner through the spiral promotion. 9.Friction cleanerMotor: 22kwScrew: ф500mmScrew Rotating Speed: 900rpmEffective Length: 3000mmThe parts contacted the raw material are made of stainless steel.Function: This machine has the self dirt-draining function; Removal oil and paper label on the film; The material was original clean by this facility. Working Principle: With the high speed rotating screw, the sand and soil dirt could be separated.  Rinse tankWashing Roller Motor : 3kw*2Dirt Collecting Motor: 3kwDirt Draining Motor: 3kwLength: 6000 mmWidth: 1500 mmHigh: 2200 mm  Screw FeederMotor power:3kwScrew diameter:Φ350mmScrew rotate speed:75rpmSieve hole diameter:Φ3mm 12.Dewatering Machine Motor Power:18.5kwRotor diameter:Φ650mmRotor speed: 2000rpmFunction:Make the materials dry by high-speed rotating, and send the dry materials to the drier hopper. 13.Mixing& DryerMixing motor power: 3kw Blower power: 1.5kw Heating power: 36kw Capacity:  1000kg Barrel body diameter: Φ1300mm Dimensions: 1500 * 1500 * 3500mm 14.Electric control boxElectric cabinet one set, electrical equipment adopts Siemens and Domestic famous company; Japan RKC Intelligent temperature control instrument digital display; NS transducer; have Emergency brake switch, each part of the equipment operation state shows in the  instrument Welcome to visit our website ,and tell us if you want get the one or the whole line .Thanks /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
