PVC Pipe Extrusion Making Machine Line

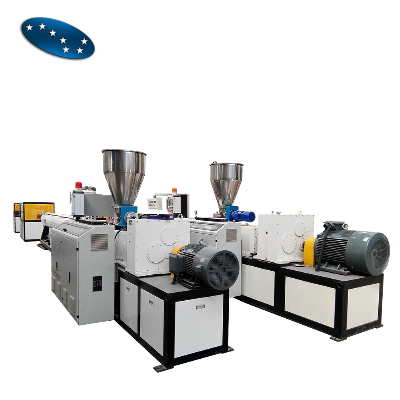

PVC Pipe Extrusion Making Machine LineProduct DescriptionBrief Introduction:GF series plastic pipe material production line is mainly used in the area of agricultural water supply system, architectural water supply system, pavement of cables, etc. as well as PVC pipe material of all sorts of pipe caliber and wall thickness.This machine group consists mainly of twin conical screws extruder, vacuum calibrating tank, haul-off unit, cutting unit, tilter, etc. single screw extruder and haul-off unit have applied imported A/C inverter, both vacuum pump and driving motor have applied excellent products.The drawing machine includes two-claw type, three-claw type, four-claw type, six-claw type, eight-claw type, etc.Saw cutting or planet cutting can be applied, it is additionally applied with length measuring meter and thickness increasing device, the property of machine group is reliable, the production efficiency is high.With special device, it can produce inner wall spiral pipe, inner wall hollow pipe, and core layer bulpo pipe, etc, it can also produce PP, PE, ABS, & PPR, PEX, silicon core pipe and pipe material of other material.The planet-shaped cutting machine is fully automatic computer digital control, it has such advantages of simple operation, reliable property, etc. It has reached world advanced level.Advantages: The series extruders with appropriate die-mould and auxiliary machine can directly convert thermoplastic especial PVC powder into pipe,plate sheet,film and profile,and also provide function of modifying and pelleting.The extruders are derived by A.C motor with a thruster to steepless regulate.It is also equipped with the over-load protection and stoppage alarming system .The screw's core and the outside of barrel is cooled by circulation of oil,includes vacuum venting and forced feeding.   Application: Diameter 16mm-800mm series PVC pipe extrusion production line is mainly used in the manufacture of plastic PVC pipes with various diameters and wall thickness used in the industried such as agriculture and constructional plumbing, cable laying etc.PVC pipe extrusion line Include:Spring feeder→Conical twin-screw extruder→mould→vacuum calibration tank→ haul off→cutter→ stake etc.The extruder and haul off adopt imported AC frequency control device, vacuum pump and haul off motors adopt high-quality products. The haul off methods are two-claw, three -claw, four-claw, and six-claw etc. You may choose saw blade cutting type or planetary cutting type. It is additionlly attached with length counter and intensifying device. This line is of reliable performance and high production effeciency. ItemSJSZ-45SJSZ-51SJSZ-55SJSZ-65SJSZ-80SJSZ-92Diameter of screw(mm)45/9051/10555/11365/13280/15692/188Number of screw(mm)222222Direction of screwsScrew rotation direction/////Screw rotation speed(rpm)1-451-45401-351-371-33Effective length of screw(mm)98510701200144018002500Power of Main engine(kw)1518.522/30375590Barrel heating power(kw)121818243686.8Production capacity(kg/h)12080-150150-180250-300320-400600-800Center height(mm)100010001000100010001200Net weight(kg)280032003500400050008000Dimensions(mm)(L*W*H*)3300*1200*21003600*1100*21003600*1100*21004235*1520*24504750*1550*24606725*1550*2841 Zhangjiagang sevenstars is located in Zhangjiagang city, China, a beautiful and famous city for all kinds of plastic machine. We have 17000 square meters land and new modern workshop, we mainly development, design, manufacture and marketing plastic pelletizing machine, plastic recycling machine, pet bottle recycling machine, PVC pipe making machine, PE pipe making machine, PVC foam board production line, plastic granulator, plastic shredder, plastic pulverizer, Plastic agglomerator, single shaft shredder, double shaft shredder, plastic crusher and so on. By the several years developing, we grown up to a middle scale company in China plastic industry. As one of the reliable supplier in China, We have keeping improved our management and technology level. Up to now, we have earned good reputation in domestic and abroad market. And our products have been exported to many countries, like mexico, America, Argentina, Chile, Brazil, Russia and so on. Quality and honest is our foundation, customer satisfactory is our job, to get "Win-Win" is our main targe. We always focus on improving our quality. And we have buit up a professional after-sale services team with rich-experienced in machine commissioning and installation. We believe our quality and service will bring success to each customer. Welcome final users and distributors from all the world contact with us and create success. With your support and our effort, we deeply believe that the tomorrow of sevenstar will be much better.   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
