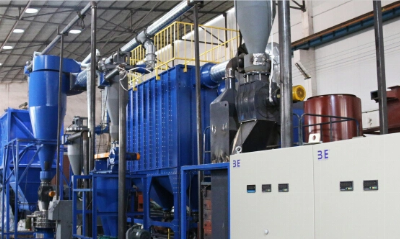

Waste Battery Lithium Battery Electrode Sheet Crushing Recycling Line

     3E waste Lithium Batteries crushing & sorting line, it can separating electrode material and other materials by physical crushing method, adopting multiple screening ways , air separation methods, use static and dynamic combination with recovery of valuable components. Recovery black powder, diaphragm, copper foil, aluminum foil, etc., in the process of crushing and separation, use alkaline water film neutralize to collect electrolyte.Production feature :Capacity:500kg-2000kg/h Application range :Disposal of waste power lithium battery, mobile phone lithium battery, electrode. Equipment feature :*The plate crusher is used for the preliminary crushing. There is air passage inside cutting chamber. So there is no flammable gas accumulates and no fire risk during the crushing process.  * It can process crushing without battery discharge, so that the diaphragm could be recovered in advance. The pressure of exhaust gas treatment will be reduced in low-temperature pyrolysis and the quality of black powder can be improved.  *The separation includes static and dynamic screening. It will separate copper, aluminum foil, black powder and the diaphragms. It could improve the recovery rate for the black powder.  *Adopting unique crusher, it could separate the black powder, copper foil and aluminum foil very well. What is more those material  will get into particle, so it is better for the separation.  *Humanized design, PLC automatic control, easy maintenance . Recovery index: The content of nickel and cobalt in copper granules
