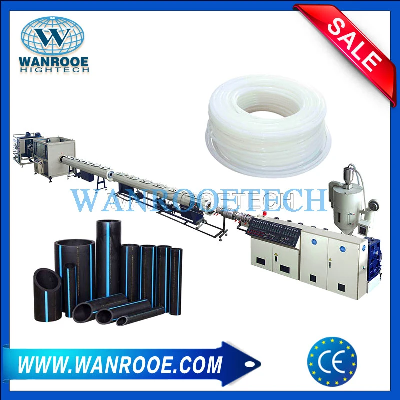

Competitive Price Pb PP PE PPR HDPE  Pipe Making Plastic Extrusion Line

Competitive Price PB PP PE PPR HDPE Pipe Making Plastic Extrusion LineDescriptionThis PE pipe extrusion line can be used in HDPE Large Diameter Gas and Water Pipe which have excellent stiffness and flexibility, heat resistance, aging resistance, high mechanical strength, resistance of environmental stress cracks, resistance to creep deformation, heat-linkage, and so on. So, it is a preferred gas and water pipe for ductwork system between city and its suburb, Large diameter HDPE pipes start to play very important role in the city water and gas supply systems. Process FlowRaw material + additive → mixing → vacuum feeding machine → hopper dryer → single screw extruder → color code extruder → mould and calibrator → vacuum forming machine → cooling tank → haul off machine → cutting machine → stacker   Technical Parameters  Model PE-16/63PE-20/110PE-50/160PE-75/250PE-110/315PE-200/450PE-315/630PE-400/800Pipe diameter 16-63mm20-110mm50-160mm75-250mm110-315mm200-450mm315-630mm400-800mmMax output 150kg/h200kg/h300kg/h350kg/h400kg/h500kg/h850kg/h850kg/hExtrusion speed1-15m/min1.2-12m/min0.6-8m/min0.5-4m/min0.4-3.7m/min0.3-3m/min0.2-2m/min0.1-1 m/minExtruder modelSJ-65/30SJ-65/33SJ-75/33SJ-75/33SJ-75/33SJ-90/33SJ-120/33SJ-120/33Installed power85kw110kw125kw180kw260kw325kw480kw600kwCenter height1000mm1000mm1000mm1000mm1100mm1100mm1200mm1300mmLine length 35m38m38m40m42m52 m60m68mCharacteristics1, The extrusion line produces PP, PE ,PPR, ,HDPE ,LDPE and water pipe.2, The unit consists of single screw extruder, vacuum calibration tank, haul-off, cutter and stacker etc.3, This line is of reliable performance and high production efficiency.4, Our company can also manufacture  PVC pipe extrusion line,UPVC pipe extrusion line etc.  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
