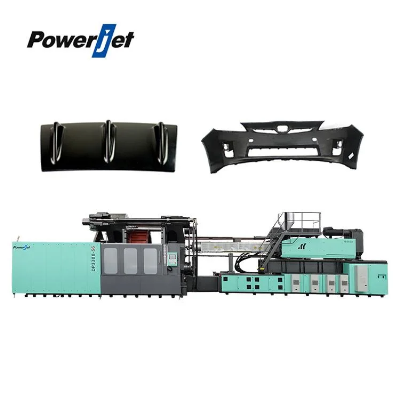

Product ParametersDESCRIPTIONUNITDP3300-S6 International Model 69500-3300 Clamping Force kN 33000 Opening Stroke mm 3200/2200 Space btw.Tie Bars mm 2270×1900 Daylight Max. mm 4200 Mold Thickness(min-max) mm 1000-2000 Ejection Stroke mm 550 Ejector Force kN 580 Screw Diameter mm 220 Shot Volume cm3 49416 Shot Weight(PS) g 44968 Plasticizing capacity(PS) g/s 303 Injection Rate g/s 2595 Injection Pressure MPa 141 Screw L/D Ratio L/D 22 Injection Stroke mm 1300 Screw Rotary Speed Max. rpm 49 Nozzle Contact Force kN 290 Nozzle Stroke mm 1300 System Pressure MPa 17.5 Pump Motor kW 5×50 Heating Capacity kW 223 Oil Tank Capacity l 3300 Machine Dimensions m 17.0×5.0×4.0 Machine Weight T 180 Machine Details High EfficiencyLow Energy Consumption The high-pressure clamping adopts movable platen clamping structure, which is fixed by a high-pressure tie bar, which is reliable in sealing, does not leak oil, and the tie bar is durable. The ejector cylinder contains a converted structure, which ensures the whole machine more short and occupy less space.Large mold opening stroke, high-speed and stable mold opening and closing, high efficiency. Ultra-wide space of the mold clamping area, large core pulling space and easy operation. The mold clamping unit is automatically lubricated with grease, clean, low maintenance cost, simple and convenient. ApplicationSales & Service NetworkWe have established the global marketing network. To deliver the value of Powerjet injection molding machine and extrusion blow molding machine to over 100 countries area. Multiple senior managers and business elites worldwide. Become the trustworthy partners. Provide the most thoughtful service and fastest user support for you constantly. sincerity for you.Satisfied Customers FAQ Q1: Are you a manufacturer or trading company?A1: We are a factory for plastic machines. Over 23 Years Experience In Manufacturing Injection Molding Machine And Blow Molding Machine.Q2: Delivery timeA2: Normally Machine Delivery from the factory in 0-60 days after receiving the down payment. (During Chinese Public Holidays like National Day or Chinese New Year, the delivery time should be 10-30 days longer accordingly).Q3: Where is your factory located?A3: Our factory is located at No.5 Chuangxin Xi Road, Leping Town, Sanshui District, Foshan City, Guangdong Province, China. 1h drive from Guangzhou to our factory. Welcome to visit our factory. /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
