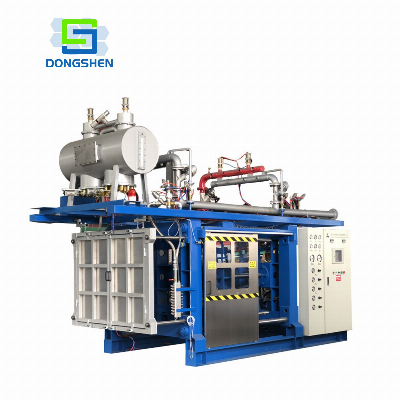

Full Automatic Expanded Polystyrene Packing Box Making Machine

Main Features: 1, Machine structure: All frames are welded by 16/20mm steel plate, very strong. Machine legs are made by high-strength H type steel profile, foundation is not required from clients. 2, Filling system: Machine allows three filling modes: normal pressure filling, vacuum filling and pressurized filling. Material hopper has sensor to control material level, material discharging is done with rotary discharging plates, total 44 discharging holes 3, Steam system: Adopt balance valve and Germany electric gauge switch to control steaming 4, Cooling system: Vertical vacuum system with water spray device at the top make vacuum efficient. 5, Drainage system: Increase mould outlet and use 6 inch drainage pipe and big butterfly valve, make mould draining faster. ItemUnitFAV1200EFAV1400EFAV1600EFAV1750EMould Dimensionmm1200*10501400*12501600*13501750*1450Max Product Dimensionmm1050*900*4201250*1100*4201400*1200*4201600*1300*420Strokemm150~1500150~1500150~1500150~1500SteamEntryInch3''(DN80)4''(DN100)4''(DN100)4''(DN100) ConsumptionKg/cycle4~75~96~106~11 PressureMpa0.4~0.60.4~0.60.4~0.60.4~0.6Cooling WaterEntryInch2.5''(DN65)3''(DN80)3''(DN80)3''(DN80) ConsumptionKg/cycle25~8030~9035~10035~100 PressureMpa0.3~0.50.3~0.50.3~0.50.3~0.5Compressed AirLow Pressure EntryInch2''(DN50)2.5''(DN65)2.5''(DN65)2.5''(DN65) Low PressureMpa0.40.40.40.4 High Pressure EntryInch1''(DN25)1''(DN25)1''(DN25)1''(DN25) High PressureMpa0.6~0.80.6~0.80.6~0.80.6~0.8 Consumptionm³/cycle1.51.81.92DrainageInch5''(DN125)6''(DN150)6''(DN150)6''(DN150)Capacity15kg/m³S60~11060~12060~12060~120Connect Load/PowerKw912.514.516.5Overall Dimension(L*W*H)mm4750*1750*31304700*1920*32504700*2030*34504700*2030*3450WeightKg6000650060006000/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
