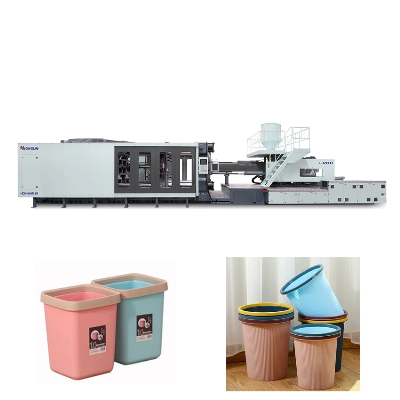

1.Picture MODEL:HXM2200TECHNICAL PARAMETER TABLEABC INJECTION UNITSCREW DIAMETERmm155165175 SCREW L/D RATIOL/D232221 INJECTION CAPACITY IN THEORY150130112882cm3177372009922609 INJECTION WEIGHT(PS)g161401829020574 oz569.3645.1725.7 INJECTION PRESSUREMPa181160142 INJECTION RATEg/s128414551637 PLASTICIZING CAPACITYg/s100115135 SCREW SPEEDrpm66CLAMPING UNITCLAMPING FORCEKN22000MOVING MOULD-PLATE STROKEmm1950 MAX. MOULD HEIGHTmm1700MIN. MOULD HEIGHTmm780SPACE BWTWEEN TIE-BARS (W×H)mm1800*1620HYDRAULIC EJECTOR FORCEkN520HYDRAULIC EJECTOR STROKE mm450EJECTOR NUMBERn33OTHERSPUMP PRESSUREMPa17.5MOTOR /DRIVING POWERKW38+38+47+47HEATING CAPACITYKW110MACHINE DIMENSION (L×W×H)m19.4*3.9*5.1MACHINE WEIGHTt155OIL TANK CAPACITYL2270Product Advantages: a. Super energy saving Output power varies with the load, and no energy is wasted. In the holding pressure phase, the servo motor will reduce speed, with low energy consumption; during the cool-down period, the motor does not work, with zero power consumption. Compared with the ordinary injection molding machines, it can save 20%-80% of the power. b. Hiigh precision and high stability Equipped with the precise pressure sensor and rotary encoder, it can respectively monitor and feed back on flow and pressure. Based on the feedback, the high performance synchronous servo motor will adjust flow and pressure accordingly by changing the speed and torque. The closed-loop control can ensure the stability of product quality. c. High response and high efficiency The driving system responses with high sensitivity . It takes only 0.05 seconds to reach maximum value. The response speed is much faster than the ordinary injection molding machines. In that way, it significantly shortens the cycle time and increases the production efficiency. 2.Application3.Processing,assembling production line5.Loading containers6. Customer case Client in China produce shoe for several famous companies7.Client in Malaysia /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
