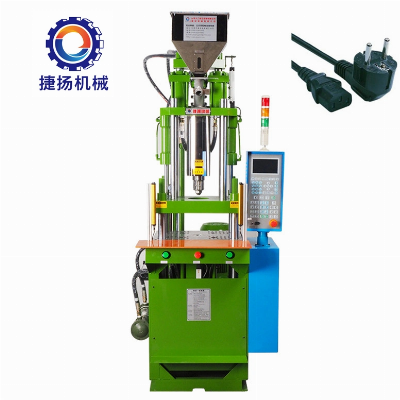

45ton Data Cable Plug Vertical Injection Molding Making Machine

45ton data cable plug vertical injection molding making machineDetails photos:Machine Main Products:Product Application:Vertical injection machine have the advantage of low noise, low energy consumption,high efficiency and long life time, it's widely apply to produce various terminal blocks, household appliances, consumer electronics, power tools, automotive dashboards, medical devices, open containers, connectors, cables,auto parts, Plug ,etc.Specification: MODELJY-450ST  UNIT    INJECTIONUNITScrew DiametermmΦ30Φ32Φ34Theoretical Injection Volumecm³98.9112.5127Injection Weightg83.5106.3120Max.Injection PressureMpa170.8150133Injection Ratecm³/s5360.372Injection Speedmm/s75Injection Strokemm140Screw Speed Rotationr.p.m0-200NO.of Temperaturecontrol 3Nozzie Out From Platensmm≥35CLAMPINGUNITClamping ForceKN(tf)441(45)Clamping Strokemm200Min.Mold Thicknessmm150/250Max.Openingmm350/450Distance Between Tie Bas(L*W)mm410*250Max.Mould Size(L*W)mm400*300Platen Size(L*W)mm550*390Ejector Distancemm35Ejector ForceKN(tf)17.2(1.75)OTHERSSystem PressureMpa13.7Oil Tank CapacityL120Electric PowerKW(HP)5.5(7.5)Heater PowerKW3.4Machine Dimensions(L*W*H)m1.2*1.1*2.4Machine Weighttf1.6 Main Features:1) Straight screw ejected assembly.2) Three-phase temperature, ejected speed, backing pressure and screw speed is suitable for various plastic to confectioned.3) Low-die fixed top active mode makes inserted objects excellent positioned features and the machine has liftout attachment for finished goods.4) Low-pressure closed die assembly can protect the safety of die.5) Material tube can be lifted. It is easy to clean stub bar. It is easy to fix die.6) Can be installed a single mold or double shuttle table. Packaging & Shipping&Certification:Package1.The standard package is wooden box without fumigation.2. We can also pack it according to customers special request.Delivery Time3-25 days after confirming order,detail delivery date should be decided according to production season and order quantity  Company Profile: FAQ:  Q1: Are you a trading company or a manufacturer?A1: Factory we are, all the machine are made by ourselves. Besides, you can get the customize service with your requirementsQ2: What's your warranty for the machine?A2: One Year Warranty(all the machine parts can be replaced within one year free of charge, not including the manmade broke), life-time maintenance.Q3: What's your Delivery Time?A3: Usually it is 3-5 days if the machine is in stock; If not, the delivery time is 10-25 days according to your required quantity and our busy season.Q4: Why choose Jieyang  Machinery Co., Ltd.?A4: "Customer Satisfaction, Continual Improvement & Innovative Service" are the driving force for our company to moving forwards. We will devote every efforts to do the best level machine and service.You are welcome to consult!  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
