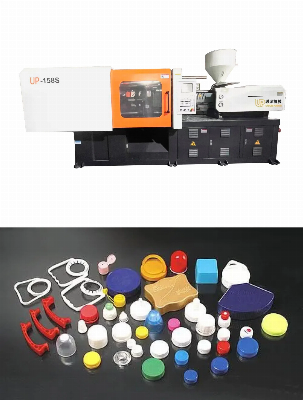

China servo injection molding machine. A. modulus of capacitance: The position, size, and maximum allowable modulus of capacitance and minimum closure thickness of the injection molding machine guide pillar (Green column).standard injection molding machine manufacturer B .nozzle parameters: spherical diameter of the nozzle, nozzle aperture, nozzle outer diameter, maximum nozzle extension length, positioning aperture.standard injection machine.C. code mold parameters: code mold hole, slot size.ce standard injection molding machine.D .Ejection mechanism: The position of the ejection point and the diameter of the ejector rod, and if necessary, the ejection force and ejection stroke are also provided.E. Mold opening stroke and maximum opening distance.plastic injection machine Technical ParametersModel UP-158TInjection UnitA BCScrew diameter (mm)424245Shot Volume (cm3)278306351Injection weight (g)249275316injection pressure (Mpa)149163142Screw speed (rmp)0-20Clamping Unit Clamping force (KN)1580Open stroke (mm)390Max Mold height (mm)450Min Mold height (mm)150Space between tie bars(mm)470*420Ejector force (KN)53Ejector stroke (mm)143Others Pump pressure (Mpa)16Motor/driving power (KW)13(13.4)Heating power (KW)7.9Machine dimension (M)4.35*1.2*1.9Machine weight (T)4.5Oiltank cubage (L)260 FAQ1: Are you a trading company or a manufactory? We are a manufactory, we supply the factory price with good quality, welcome to visit !2:Do you have QC or any safety standards for your plastic injection molding machine? yes,we have established a highly strict quality control department to guanrantee good quality.3:Why choose our plastic injection molding machine? High quality with competitive price4::How about quality control in your factory? "Quality is first, Customers are friends".5:Can you help us with the shipment of this machine ? Yes , with honor ,we have our special shipment company which already cooperate /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
