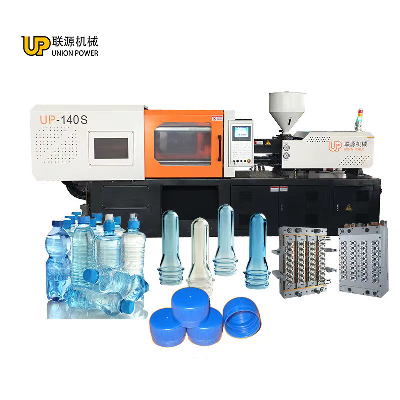

China servo injection molding machine. A. modulus of capacitance: The position, size, and maximum allowable modulus of capacitance and minimum closure thickness of the injection molding machine guide pillar (Green column).standard injection molding machine manufacturer B .nozzle parameters: spherical diameter of the nozzle, nozzle aperture, nozzle outer diameter, maximum nozzle extension length, positioning aperture.standard injection machine.C. code mold parameters: code mold hole, slot size.ce standard injection molding machine.D .Ejection mechanism: The position of the ejection point and the diameter of the ejector rod, and if necessary, the ejection force and ejection stroke are also provided.E. Mold opening stroke and maximum opening distance.plastic injection machine Technical ParametersModel UP-230T PET Injection UnitA BCScrew diameter (mm)505560Shot Volume (cm3)461558664Injection weight (g)553669796injection pressure (Mpa)169142121Screw speed (rmp)155Clamping Unit Clamping force (KN)2300Open stroke (mm)475Max Mold height (mm)550Min Mold height (mm)220Space between tie bars(mm)530*530Ejector force (KN)70Ejector stroke (mm)135Others Pump pressure (Mpa)16Motor/driving power (KW)22(21.2)Heating power (KW)14.2Machine dimension (M)5.8*1.55*2.15Machine weight (T)6.3Oiltank cubage (L)350FAQ1: Are you a trading company or a manufactory? We are a manufactory, we supply the factory price with good quality, welcome to visit !2:Do you have QC or any safety standards for your plastic injection molding machine? yes,we have established a highly strict quality control department to guanrantee good quality.3:Why choose our plastic injection molding machine? High quality with competitive price4::How about quality control in your factory? "Quality is first, Customers are friends".5:Can you help us with the shipment of this machine ? Yes , with honor ,we have our special shipment company which already cooperate /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
