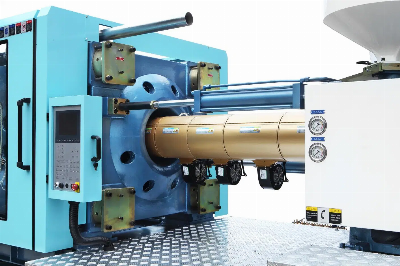

ABS PVC HDPE PE PP Injection Molding Machine

This Servo drive machine is designed For your PVC products Processing applications . this series of machinery is fast ,accurate and has Excellent Repeatability .This THREEPLAST injection molding machine can help you reach a maximum producibility on a wide range of materials . with a electroplating screw & barrel . wear-resistant screw tip. High strength tie-bars and rigid platens . it all adds up to a unit ,that will stay the course ,giving consistently high quality and output with PVC material and with the most complex of molds .                                                                                                    Inovance Servo Drive                          Sumitomo Servo Pump                                                        Phase Servo Pump         TH-100PVCInjection UnitABCScrew DiameterIn 1.181.261.38mm303235Screw L/D rationL/D23.52220.1Shot volume in3 7.148.119.64Cm3117133158Shot weight (PS)g106121144oz3.744.275.08Injection Pressurepsi333502943524650Mpa230203170Max screw speedrpm215Clamping Unit   Clamping ForceKN / T 900 / 90U.S.ton99Opening strokeIn 12.6mm320Tie-bars distanceIn 14.17 X 14.17mm360 X 360Max.mold heightIn 13.78mm350Min.mold height In 5.91mm150Ejector StrokeIn 3.54mm90Ejector forceKN30U.S. ton3.3General   Pump powerKw11HP14.74Heating capacityKw7HP9.38Oil tank Capacity Litre157Machine DimensionsIn181.1 X 47.24 X 70.87m3.81 X 1.19 X 1.79Machine weightKg2900Lbs6380     Facotry photos  Cusotmers  Shipping    /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
