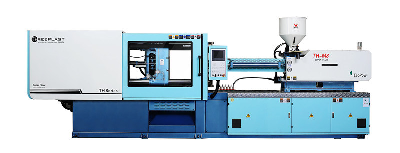

Plastic Bottle Preform Making Pet Injection Molding Energy Saving Machine

CHARACTERISTICSThis Servo drive machine is Special designed For your PET Preform Processing applications . this series of machinery is fast ,accurate and has Excellent Repeatability .This THREEPLAST injection molding machine can help you reach a maximum producibility on a PET preform products . with a Nitrided + Alloy plating  Special PET Preform  screw & barrel . wear-resistant screw tip. High strength tie-bars and rigid platens . it all adds up to a unit ,that will stay the course ,giving consistently high quality and with the most complex of molds .                                                                                   Inovance Servo Driver        Sumitomo Servo Pump              Phase Servo motor   TH-238PETInjection Unit Screw DiameterIn 1.97mm50Screw L/D rationL/D26Shot volume in3 28.73Cm3471Shot weight (PS)g558oz19.67Injection Pressurepsi24360Mpa168Max screw speedrpm171Clamping Unit   Clamping ForceKN / T 2100 / 210U.S.ton230Opening strokeIn 18.7mm475Tie-bars distanceIn 20.47 X 20.47mm520 X 520Max.mold heightIn 21.65mm550Min.mold height In 7.87mm200Ejector StrokeIn 5.51mm140Ejector forceKN62U.S. ton6.82General   Pump powerKw30HP40.2Heating capacityKw11.5HP15.41Oil tank Capacity Litre310Machine DimensionsIn214.57 X 59.06 X 90.55m5.45 X 1.50 X 2.30Machine weightKg6900Lbs15180Facotry Photos Customers  Shipping    /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
