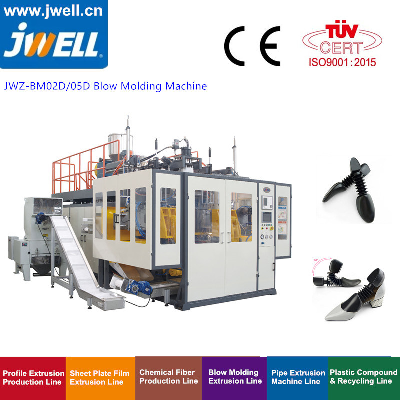

PE Plastic Shoe Foot Stretcher for Women Making Blow Molding Machine

Performance and advantages·Suitable for producing 1-5L different size of gear oil bottle, lubrication oil bottle, cooling water tank etc.·Optional multi-layer co-extrusion.·Optional view strip line system.·According to the product size, select different cavity of die head.·According to the different material, optional JW-DB single station hydraulic screen-exchanger system.·According to customer's requirement, optional auto-deflating on line, scrap conveying on line, finished product conveying online.Technical parametersModelUnitBM02DBM05D Max product volumeL52 Dry cyclePc/h700*2900*2 Die head structure               Continuous typeMain screw diametermm7565 Max plasticizing capacity (PE)kg/h9070 Driving motorKw3022 Oil pump motor powerKw117.5 Clamping forceKN7040 Space between platenmm150-510138-368 Platen size W*Hmm350*400286*330 Max. mold sizemm360*400300*350 Platen moving strokemm450/520420 Heating power of die headKw7.56 Machine dimension L*W*Hm3.7*3.1*2.73.0*1.9*2.4 Machine weightT8.55 Total powerKw6045 Note: information listed above are for reference only, the production line can bedesigned by customer's requirements.Control system Control system SIEMENS human-machine interfaceHuman-machine interface control panel screen has such functions as follows: visual display providing the best support to easily set, search, change and store the parameters, the controlling system has self-diagnosis functions, the malfunctions can be displayed on the screen.B&R Austria human-machine interface and parison programmer,can adjust within 300 points.Parison control system uses MOOG 100 points parison programmer, and it uses specially designed separate hydraulic power package to control the movement of cylinder, so it has high precision.Extrution & Die headThe extruder uses screw and barrel, which is a famous brand all over the world. It has advantages such as high output, smooth plasticization, wearable and long life. The gear box is the kind of product specially used for plastic extrusion.JWELL supply stable & different kinds of single layer /multi-layer continuous / accumulating type die head. Fit for the customer's special requirement for the different high molecular material and different number of layer.Blowpin systemUp-blowing unit(Used for JWZ-BM Continuous type Blow Molding Machine)Bottom-blowing unit(Used for JWZ-BM Accumulating type Blow Molding Machine)Output systemTake out robotScrapping collect together, convey,crusher into one unitHydrulic systemHydraulic controlling system uses servo-controlled technology to control the movements of actuators, and all the elements used in hydraulic system are famous brands, it has advantages as follows: quick response and high energy-efficiency.Open&Closing systemCommon three platen and three tie bar structionToggle structionLubrication systemThis auto-lubrication system can lubricate the system with a set cycle automatically.Electric systemSIEMENS CPU unitSIEMENS temperature-control unitSIEMENS digital-output unitSIEMENS analog-output unitMITSUBISHI CPU unitJWELL invertor revolving speed-controlSchneider electric components    /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
