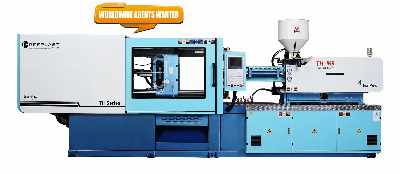

Automatic Bottle Preform Moulding Making Machine Plastic Injection Molding Machine

  Threeplast injection molding machine can help you reach a maximum productivity on a wide range of materials. With a nitrided +alloy screw & barrel, wear-resistant screw tip, high strength tie-bars and rigid platens, it all adds up to a unit ,that will stay the course, giving consistently high quality and output with a wide range of materials and with the most complex of molds.   TH160Injection UnitABCScrew Diametermm424550Screw L/D Ration L/D222018.5Shot VolumeCm³312358442Shot Weight(PS)g284326402Injection PressureMpa203177143Max Screw Speed rpm240Clamping UnitClamping  Force KN/T1600/160Opening Strokemm435Tie-bars Distancemm465x465Max Mold Heightmm550Min Mold Heightmm210Ejection Strokemm135Ejection ForceKn46OthersMotor power KW23Heating Capacity KW9.9Oil Tank CapacityL300Machine Dimensions m5.31x1.40x2.20Machine Weight kg/T5300/5.3   Threeplast plastic injection molding machine platen made by QT500 material, withT-slorts,Germany standard .Tie bars made by 42crmo .   We check the main parts three times during manufacture, before assembly and before delivery.   Our screw and barrel  supplier is  HAYEUR company.   Our screw and barrel are 100% tested and checked after installation. Our screw run very somoothly and stably.    Threeplast injection machine frame adopts cutting by advanced laser cutting machine and overall bending process, the skeleton square tube of table -board and bottom plate of the frame shall adopt overall bending process without any splice weld points,pole adopts full welding process, and high-strength multi-point support.   The whole injection molding machine is featured by stable running, with small vibration. The product manufacture has high precision, and material leakage resistance.     The coupling shaft of the Threeplast injection moulding machine is of toggle design for easy maintenance. The injection unit uses a linear guide bar, which is very smooth, with low friction, long service life, high precision and energy savings.   The Threeplast injection molding machine uses a high speed motor, so the production capacity of whole injection molding machine is very high.     The paintwork on the Threeplast injection moulding machine is automotive grade and very stable, even after many years this machine still looks new.      Threeplast  plastic machinery use larger squarewires and are therefore safer than other injection molding machines.     Threeplast injection molding machine useKaku fan, which has much better cooling function.    Threeplast plastic machinery standard controller is EST(from Inovance company), you also can choose Keba/Gefran/Techmation and others.  Threeplast injection machine safe door use car-class tempered glass. It's very clearer and safer than previous fabric glass.  Threeplast machine hydraulic pipe use Germany brand Continental 4 layers special strong high pressure pipe with safety chain.  Threeplast injection moulding machine has an oil recovery tank to keep the machine in good lubrication condition,which can saves oil, no pollution and has pressure detection. Threeplast PET bottle preform injection machine with filter.    We assemble filter in the electric box to prevent  mutual interference of current between lines and mutual interference between electrical component.  In some countries where the voltage is unstable, filters can help stabilize electrical components.  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
