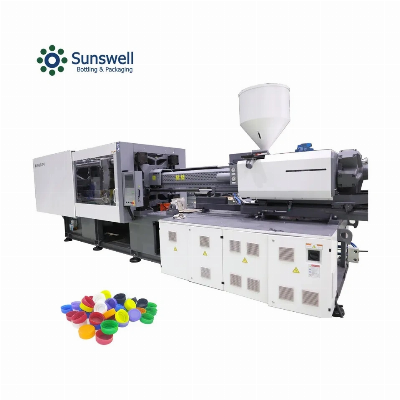

Plastic Bottle Preform Injection Molding Machine

Product DescriptionPET bottle preform injection molding Specifications Plastic Bottle preform injection molding machineDehumidifying dryer and auto loader system for material. Environment dehumidifying dryer system. Chiller system. Mold and hot runner temperature controller system. Automatic system. PET Bottle Preform Injection Machine FeaturesSpecial injection construction designed to benefit for plasticizing. By means of linear potentiometer(L/P) for injection and clamping unit. Deviation is under 0.01mm. By use of PID temperature controller, which has limitations for screw cold starts,broken wire  detection, temperature preservation, etc. Temperatures can be controlled by ±1°C. Microprocessor controller with 4 stages injection, 3 stages holding pressure and 3 stages back pressure. Shut-down memory is able to store up to 100 preset mold data memory. Higher stability and lower defect in PET preform dimension. TYPEITEMBX-600BX-1500BX-2500BX-5000CONTAINERNumber of cavity1111Theoretical output1200-1400pcs/hr1000-1300 pcs/hr800-1200 pcs/hr500-700 pcs/hrMax.container volume0.6L1.5L2.5L5LMax.neck diameter65mm80mm90mm120mmMax.container diameter80mm105mm115mm200mmMax.container height260mm330mm350mm350mmELECTRICAL SYSTEMNumber of lamp12pcs(1500w/pcs)16 pcs(1500w/pcs)16 pcs(1500w/pcs)24pcsMax.heating power18kw24kw24kw36kwInstallation power18.5kw24.5kw24.5kw40kwActual power consumption8-12kw10-12kw12-14kw16-20kwAIR SYSTEMOperatating pressure7kg/c7kg/c7kg/c7kg/cLow pressure consuming800Ltr/min900 Ltr/min900 Ltr/min1200 Ltr/minBlowing pressure≤40kg/c≤40kg/c≤40kg/c≤40kg/cHigh pressure consuming1200-1600Ltr/min1200-1600Ltr/min1200-1600Ltr/min2000-2500Ltr/minWATER CHILLEROperating pressure5-6 kg/c5-6 kg/c5-6 kg/c5-6 kg/cTemperature10101010Consuming3600kcal/hr3600kcal/hr3600kcal/hr5600kcal/hrFlow rater20Ltr/min20Ltr/min20Ltr/min30Ltr/minMACHINEMachine dimension2.2×1.5×1.8(m)2.4×1.6×1.8(m)2.5×1.7×1.8(m)2.2×1.8×1.7(m)Machine weight1.3T1.5T1.7T        2.8T Sunswell Machinery Co., Ltd.Add:    No. 1, Dongli Road, Donglai, Zhangjiagang 215600, Jiangsu, China     Web:    sunswell.en.made-in-china.com  About Sunswell/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
