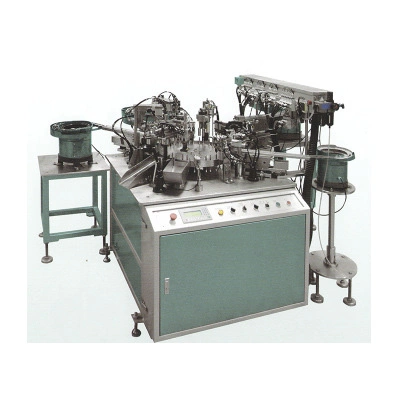

Energy Saving Ball Pen Making Injection Machine

Pen making machineIntelligent control parts :operation easily by use of high quality PLC and touch panel,along with variable frequency regulating speed technology,else saves energymechanical transpiration parts:take the use of high efficiency cams combined the precision machinery cam,are driver by the same main power,which can make improvement the stabilization and life span.automatically feeding system: feeding by way of vibration,the machine hands installation accurately,ensure the feeding stabilization and security high quality working speed:50-60pcs/minWork station:double type power:1.5kw 380V 3P 50Hzair : 5-6kgf/cm²Working type :AutomaticallyWorker:1 peopleMain electrical parts:solenoid valve:SMCSensor: Tai wan yangmingMain motor :tai wanPLC:TaidaTouch screen:TaidaMain electrical:SchneiderCylinder:Airtac TaiwanEach movements with sensor detectionDESCRIPTION:This device is controlled by PLC with 5.7 inch of humanized color operation interface, using frequency control system which is simple for the users to operate, and effectively improve working efficiency. Adapts intellectual material feeding system, the machine can automatically identify the direction of the barrel and change it to the right side for the following assembling steps, and each function finished will be detected by sensors, if any trouble happened, it will stop automatically for checking which can ensure the assembling quality.Mechanical structure for the CAM integration, with united power transmission instead of traditional chain driven, that makes the machine more durable and easy for maintenance.PROCESSING STEPS: Barrel feeding=>assembling filter=>filter inspection=>ink injection=>plug assembling=>plug checking=>turning to 180 degree for tip assembly=>tip inspection=>cap assembling=>cap checking=>sort out the defective ones0=>collectingAssembled parts: barrel, filter, ink, plug, tip fitting, cap.BRANDS OF MAIN PARTS: Magnetic valve: SMC Japan, AirTAC Taiwan,Cylinder: SMC Japan, AirTAC TaiwanFRL: SMC Japan, AirTAC TaiwanBarometer: SMC JapanKey electric components: Mitsubishi, SANYO, SchneiderTECHNICAL PARAMETERS:Product name Retractable ball pen assembly machineModel ESMAS-P052Operation type Fully-automatic Working capacity 40-50PCS/ MinManpower 1 workerPower 2.2KW Electric supply 380V, 50HZDimension 5700*1100*1900mmNet weight 2500KGS Packing Plywood caseShanghai Gengyond machinery Technology Co.,Ltd.ADD: 709,No.1328,Hengnan, Road, Minhang DistrictTony WongMob : 0086 18116095133  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
