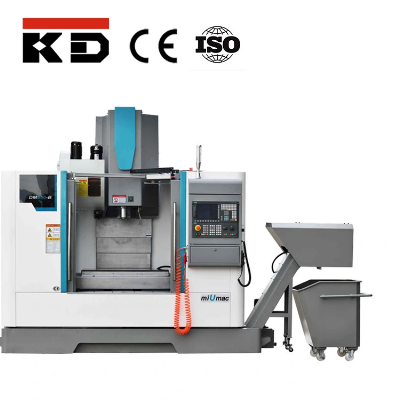

High Precision Super Speed CNC Vertical Machining Center Vmc800

PRODUCT SPECIFICATIONS MODELSDM852DM1052TRAVEL     X axis 800mm 1000mm Y axis 520mm Z axis 520mm Spindle center to column 550mm Spindle end to table 150-670mm TABLE     Table size 950×510mm 1130×510mm T-slot(width×number×space) 18mm×5×100mm Max. table loading 800kg SPINDLE     Taper bore of spindle BT40 Spindle power 11/15kw (FANUC) Spindle speed 8000rpm FEED     X/Y/Z fast feed 30/ 30/ 30m/min Motor power/torque of X/Y/Z 3/3/3 kw (20Nm) Guide ways number of X/Y/Z 3/3/2 (ball type) Linear guide width of X/Y/Z 35/35/35mm Diameter and screw pitch of X/Y/Z lead screw Ф40x12mm (C3 level) Bearing number of X/Y/Z lead screw 7/7/7 ATC     Tool number 24 Max. tool length 300mm Max. tool weight 8kg Time (tool-tool) 2s ACCURACY     Positioning ≤0.006mm Repeatability(X/Y/Z)(ISO) ≤0.004mm OTHERS     Pneumatic boosting cylinder 3.5T Power of coolant pump 550w Capacity of lubrication pump 2L Capacity of coolant tank 200L Min. Input 0.001mm Overall dimension (L x W x H) 3750x2300x2700mm 4300x2300x2700mm Net weight 5150kg 5480kg /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
