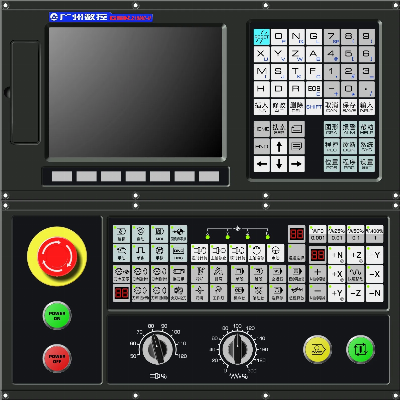

GSK 218MC  Machining Center & Boring machine CNC Machine CNC Controller

i Product Description1. It has high speed and high precision. The effective machining speed of complex surfaces is Sm/min, and the optimum machining speed is 4m/min. It has the look­ahead function with 1000 blocks, with the maximum position speed of 60m/min and the maximum feed speed of 15m/min 2.It supports three kinds of communication interfaces, including RS232, USB, and network, realizing file transfer, DNC machining, and USB online machining3.It also supports various kinds of tool magazines, such as carousel A TC, disc ATC, and servo ATC 4.It supports GSK-LINK Ethernet bus functions (GE and GR series) and absolute encoders, realizing full-closed loop control, and the torque motor and motorized spindle are also optional; the system has a 4 outputs of spindle analog voltage and 4 sets of PMC axes5.It can be adapted to the functions of the automatic centering gauge or automatic tool setting gauge High-speed and high-precision machining of molds  The high-speed interpolation technique is used. The effective machining speed of complex surfaces is 8m/min, and the optimum machining speed is 4m/min. The number of segments for pretreatment is up to 1,000, with a look-ahead function, fast speed, high precision, and good surface smoothnessA global judgment should be made for shapes based on the instruction path. If there is a minor difference among segments, unnecessary speed reduction may be avoided to ensure smooth working surfaces without any deflectionThe machining time is 5-30% less than before, and this is more obvious with a higher feed speedApplication on screw milling machines o With three system control axes o  It realizes parabolic helical interpolation instructions. o  It realizes G01 helical interpolation instructions. o  It realizes handwheel interruption. o  It realizes handwheel teaching.   Application on blade grinding machines  o With three system control axes (the belt sander has 2 axes)  o It realizes the process editing of knife grinders o It imports the DXF drawings to CNC to generate machining programs  o It realizes the automatic wheel dressing function and the     segmentation compensation of tracks of mill knives  Company Profile GSK CNC Equipment Co., Ltd. (hereinafter referred as GSK) is specially devoted to conducting research and practice of basic equipment industrial development, providing "trinity" packaged solutions of machine tool CNC system, servo drive and servo motor, taking initiative in the expansion of industrial robot and all-electric injection molding machine field, developing the new marketing mode of machine tool exhibition hall, providing the customers with all-round professional machine tool remanufacturing solutions and services, promoting the integration of production and education, setting up the vocational education and training institute, as well as conducting highly skilled CNC personnel training. It has developed into a high-tech enterprise integrating science, education, industry and trade, thus being known as "China Southern CNC Industrial Base". Adhering to the corporate philosophy of "making itself a century-old enterprise and building gold quality" and the service spirit of "keeping improvement and making users satisfied", GSK enhances the user product value & benefits through continuous technological progress and innovation, and makes unremitting efforts to promote the localization process of basic equipment industry, improve the technological level of the industry, and promote the development of China's national equipment manufacturing industry. Main products:                            GSK CNC System                                                                          Idustrial robot  Full electric injection molding machine                                              CNC machine                                             our  partners  218MC USB Reading Problem Solution218MC USB Reading Problem Solution  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
