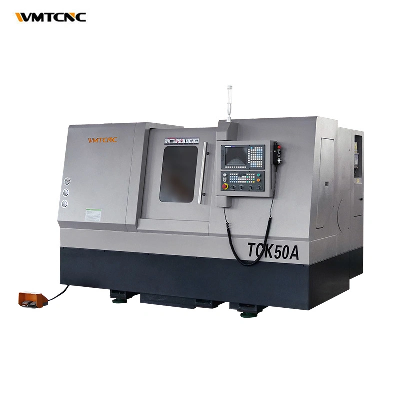

WMT metal slant bed cnc lathe machine TCK50A cnc turning lathe machine

Product DescriptionWMT metal slant bed cnc lathe machine TCK50A cnc turning lathe machine main features:1. High precision slant bed line rail CNC lathe with Taiwan screw and linear guideway.2. High precision cartridge type spindle ensure the rigidity and precision.3. Taiwan high precision grinding ball screw ensure positioning and more stable.4. Siemens, Fanuc, Syntec, Fagor controller system options.5. Monoblock cast iron of the whole machine ensure high rigidity.SpecificationTCK50ACapacity Hydraulic chuck size 8"Max. swing dia. over bed500mmMax. length of workpiece450mmMax. turning dia.400mmMax. swing dia. over slide280mmSpindle Dia of spindle bore65mmMax. dia. of through hole50mmSpindle noseA2-6Spindle speed range50~3000 r/minMax. spindle output torque177NmSpindle motor 11kwAxis X axis travel200mmZ axis travel550mmX axis rapid traverse18m/minZ axis rapid traverse18m/minTurret Type of turretBMT45Power turret12 positionTool shank size25×25mmBoring tool shank sizeφ40/φ32/φ25/φ20mm  Type of tailstockHydraulicTravel of tailstock450mmTaper of tailstock  quillMT5Max. loading capacity Disk parts200kgShaft parts500kgOthers G.W3650kgOveral dimension(LxWxH)2700×1890×1945mmDetailed ImagesCompany ProfileFAQQ1: How is the warranty?A1: Warranty time is 13 months after BL date.Q2: Can we visit your factory before order?A2: Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking. Q3: Do you have a stock?A3: Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.Q4: What's the MOQ?A4: One set only.Q5: How about your quality?A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services. Q6: Do you have professional engineers?A6: Yes.we have professional engineers and designers. We can provide OEM services.Q7: Can you provide customized machines?A7: Yes, we can design and manufacture according to your specific requirements. /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
