Economical F Shape CNC EDM Wire Cut Machine  DK7725

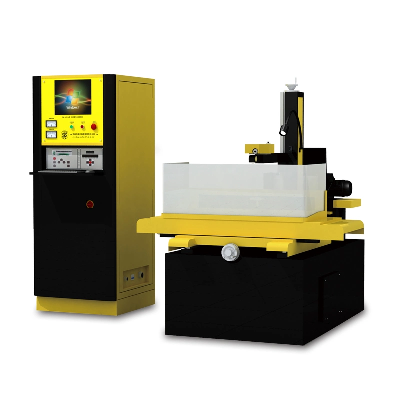

1.Equipment Photo:2.Equipment Features:1. The Economical CNC Wire cutting machine exhibits stable processing capabilities, delivering relatively good fineness while consuming low energy      and minimizing molybdenum wire loss.2. It is the wire cutting machine with the lowest loss of molybdenum wire in China at present.3. The equipment is suitable for customers who prioritize long continuous processing time over high processing efficiency.4. The machine can effectively reduce the production cost. The processing cost per square millimeter is about 60%-70% of other similliar machines.  3.Equipment Specification:  No.DescriptionUnitSpecification Model DK77251Worktable Size (L×W)mm300×4902Worktable Travel (X×Y)mm250×3203Max. Workpiece Heightmm3504Max. Workpiece Weightkg2505Machine Dimensions (L×W×H)mm1500×900×14506Machine Weightkg1000  4.Electrical Parameters:  No.DescriptionUnitSpecification Model DK77251Max. Cutting Speedmm²/min150 2Wire Electrode DiametermmΦ0.15-Φ0.253Machining Precision                              (Cutting the octagon in 10mm)mm≤0.015/10mm4Taper/Workpiece Height 6°/100mm5Power Consumptionkw≤26Surface roughnessμm≤Ra2.57High pressure water tank Multi-stage filter system8Plastic water jet plate; Bronze spout  9Control method of Z-axis manual,     transport wire tube, cooling system Controlled by the program and the NC panel10Repeating position precision of X, Y-axisμm±111Guide rail type of U,V-axis Steel rail12Speed regulation of transport wire tube Integrated frequency inverter13Number of control axes 514Power Supply AC380V, 50HzNote: Our company hold the authority to improve the design&specification of the products without special notification.  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
