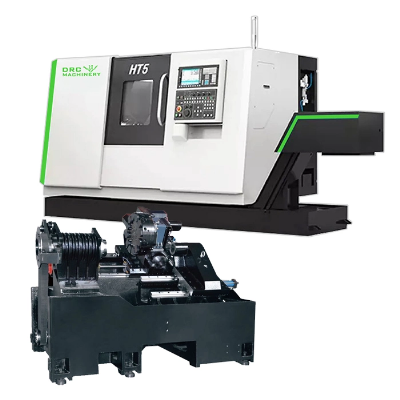

German Turning Center C Y Axis Ht6 Turning Milling Compound CNC Lathe

German CNC turning center C axis and Y axis HT6 MY turning and milling compound centerHT6LMY CNC lathe is a four-axis linkage, fully closed-loop CNC machine tool. The machine machine-electric-hydraulic integrated layout adopts a fully enclosed protective cover, the door opens to the left, and the operating table is located on the left side, and the ergonomic swing design makes the operation more convenient. Each servo feed shaft adopts high-speed silent ball screw, elastic coupling is directly connected, fast moving speed, low noise, high positioning accuracy and repeated positioning accuracy; the servo motor is equipped with an absolute value encoder, no cumulative error, no memory, No need to find a reference point, the position information will not be lost after the power is cut off. The machine tool has strong functions, high precision, reasonable layout, beautiful appearance, easy operation and convenient maintenance. Technical date Spindle head type FL220 h5 Spindle maximum speed rpm 3000 Max. Torque N×m 420 Spindle power Kw 15-18.5 Chuck diameter mm 250 Spindle bore mm 102 Front bearing diameter mm 140 Spindle bearing lubrication type Grease Linear motion lubrication type Oil Speed range rpm 5-3000 Work area Maximum swing over bed mm 680 Maximum cutting diameter mm 465 Maximum cutting length mm 1000 Maximum bar capacity mm 75 Travel of Z-axis mm 1050 Travel of X-axis mm 260 Travel of Y-axis mm ±60 Ball screw X/Y/Z axis ballscrew DxP mm 40 x 10/40 x 5/40 x 10 Feed Rapid traverse Z m/min 24 Rapid traverse X m/min 24 Rapid traverseY m/min 12 Rapid traverse C m/min 100 Feed force Feed force X/Z N 7500 Number of axis   4 Measuring system X/ Y/Z axis measuring system   Absolute rotative (X / Y/Z);VDI/DGQ 3441 Positioning mm 0.008/0.008/0.01 (X /Y/ Z);VDI/DGQ 3441 Repeatability mm 0.005/0.008/0.008 Tool attachments Power turret   BMT55 No. of tool stations Driven tools # 12 T-T time sec 0.25/0.5 OD tool size mm 25/40 Maximum speed of tool driven rpm 3000 Tool driven power Kw 3 Max. torque of tool driven N×m 45 Electrical specifications Voltage V 380 ±10% Frequency Hz 50 ± 1% Max. installed power KVA 50 400v lie protection fuses A 100 Connection cables section mm2 4 x 10 Hydraulic unit Max. working pressure bar 50 Reservoir capacity l 35 Pump flow I/ in 24 Coolant system Pump delivery/Capacity with tank l /min 30/180 Pump pressure bar 5 Noise level Less than dB (A) ≤80 Control system     FANUC - 0iTF plus Net weight kg 7800 /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
