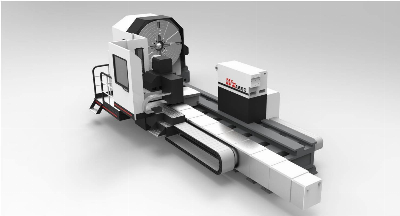

Wz CNC Heavy Duty Horizontal Lathe/Machine

Product DescriptionAPPLICATIONWZ series adopts modular design, with advantages of heavy load, high accuracy, efficiency and reliability, rational structure, wide application and convenience operation. Besides the basic functions of common heavy duty horizontal machine tools, it can process conical surface, curve surface, step axle groove and thread. It can also realize milling, drilling and grinding when equipped with different kinds of attachments.lt is mainly applied in industries such as energy, transportation, machinery, for machining shaft of wind power, generator, rotor of water turbine, diesel cylinder for ship, cross pin, connecting bar, cylinder rod, roller, mechanical shaft, rudder spindle, hoister and barrel of ship.The main performance characteristics:Headstock spindle adopts high accuracy rolling bearing at radial and axial direction. Two step mechanic speed change, AC spindle motor drive. Master and slave servo motors could be adopted for milling feeding and indexing;Tailstock adopts self-adapt mechanism of workpiece thermal extension, electric load cell and teeth plate thrust device;At lengthwise direction, carriage adopts plastic paste soft belt guideway, at crosswise direction, linear roller sliding way.Lengthwise transmission adopts double rack and pinion mechanism for clearance elimination crosswise transmission adopts double nut clearance elimination mechanism and ballscrew. Vertical. horizontal or motorized turret carriage could be adopted;Optional attachments :C type steady rest, milling tool carriage, grinding head, deep-hole boring system with large diameter, etc;Optional CNC system: SIEMENS, FANUC, REXROTH etc.  Product ParametersItemUnitModel WZ900WZ1250WZ1600WZ2000Max swing diametermm1250160020002500Max. machining diameter overmm900125016002000Max. loading capacity between centerst18/2518/2518/25/3218/25/32QTY of bed guideway 3+1444Bed widthmm1100110015051705Front bearing diameter of spindlemm240240240240Main motor powerkW60/10060/10060/10060/100Spindle max torquekNm18-3918-3918-3918-39Max spindle speedr/min800800800800Spindle mechanic shift QTYn°2222Cross slide travelmm580750750950Y axis adjusting rangemm ±50±50±50Tailstock sleeve diametermm230/300230/300230/300230/300Motorized tool-motor powerkW11 or 1511 or 1511 or 1511 or 15 Detailed Photos  WorkshopPackageInstallation and commissioning /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
