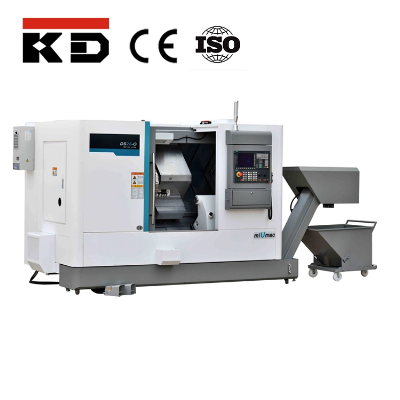

High Precision CNC Slant Bed Lathe Kdcl-28 Kaida Machine

 High Precision CNC Slant Bed Lathe Kdcl-28 Kaida MachineProduct FeaturesProduct SpecificationsMODELSDS28-O/500DS28-O /1000DS28-O /1500CAPACITY   Max. swing over bedФ520mmMax. cutting diameter for disc partsФ420mmФ420mmФ500mmMax. cutting diameter for axle partsФ300mmMax. cutting length500mm1000mm1500mmTRAVEL   X travel255mm270mm270mmZ travel600mm1050mm1550mmFEED   Rapid feed speed of X/Z30/24m/minLinear guide ways width of X/Z35/ 45mmBall screw of XØ32×10 mmØ32×10 mmØ32×10 mmBall screw of ZØ40×10 mmØ40×10 mmØ50×10 mmSPINDLE   Max. speed of spindle4000rpm2500rpm2500rpmSpindle noseA2-6A2-8A2-8Diameter of spindle boreФ65mmФ80mmФ80mmHydraulic chuck8″10"10"Spindle motor power11/15kw15/18.5kw15/18.5kwTOOL POST   Tool number12-T hydraulicOutside diameter of cutting tool shank25×25mmInner dia. of cutting tool shankФ40mmTAILSTOCK   Tailstock sleeve dia.Ф80mmTailstock sleeve travel120mmTaper hole of tailstock quillM.T.No.4M.T.No.5M.T.No.5OTHERS   Positioning accuracy of X/Z≤0.010/0.012mmRepeated positioning accuracy≤0.003/0.005mmPower of coolant pump180WCapacity of lubrication pump2LBed structure45° slant bed integrated with standOverall dimensions(L×W×H)2880×1850×2000mm4800×1850×2000mm5300×1850×2000mmNet weight4300kg5500kg6500kg   Company Profile/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
