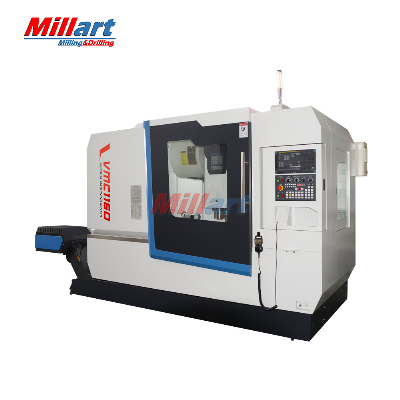

Agents Required Vertical Machining Center Vmc1160 CNC Milling Center

Agents Required Vertical Machining Center Vmc1160 CNC Milling CenterMain configuration & accessories:1. Resin sand casting, Meehanite HT-300;3. X, Y, Z rails adopt stainless steel telescopic cover;4. Roller type linear guideway from Taiwan5. Ball lead screw from Taiwan6. Standard with belt driven spindle, optional for direct driven spindle;7. Taiwan pneumatic cylinder;8. Taiwan ATC, umbrella type and disc type are available;9. Import bearings for leadsrews;10. Import coupling;11. Headstock Nitrogen balance system as option;12. Full enclosed cover;13. Rigid tapping;14. Spindle center ring blast;15. Work lamp;16. Pilot lamp;17. USB and Internet interface;18. Manual pulse generator (MPG);19. Centralized automatic lubrication system.20. Cooling system.21. Heat exchanger for electrical cabinet ;22. Leveling blocks & bolts;23. Toolbox and tools;24. CNC controller: KND,GSK, HNC (China); SIEMENS, FANUC, MITSUBISHI, FAGOR, etc.Technical parameter:ItemUnitVMC1160CapacityX axis travelmm1100Y axis travelmm600Z axis travelmm600Spindle nose to worktablemm120-720Spindle center to columnmm650Leadscrew sizeLeadscrew diametermmΦ40Linear guideway widthmm45/45/45 Worktable sizeWorktable Lengthmm1200Worktable widthmm600Max loading capacitykg800SpindleSpindle speedrpm8000Main motor powerkw7.5/11Spindle taper BT40Feeding systemFast moving speed (X/Y/Z)m/min36/36/36Cutting speedmm/min1-10000Feed motor powerkw3/3/4.5Tool MagazineCapacitypcsArm 24Max tool diametermm120Max tool weightkg8Max tool lengthmm300AccuracyPositioning accuracymm0.008Repeat accuracymm0.005Machine dimensionsLengthmm3300Widthmm2400Heightmm2800Weightkg6300Standard accessories:Fanuc 0i TF control systemTaiwan Spindle: 8000rpmX/Y/Z axes: Fanuc servo drive motorMain motor: Fanuc spindle motor24 tools Umbrella typeUSB for information transferRough cutting of threadFull closed coverAutomatic lubricationCoolant system,Work lamp,Tri-color indication lampAir gunHeat exchanger in cabinet3-Axis linear guideway from Taiwan HiwinBall leadscrew from taiwan HiwinOptional accessories:Automatic chip conveyor & chip bucket (Chain type)Spindle direct driven, speed 12000 rpmSpindle center water sprayAir conditioner for electricity cabinetAutomatic chip conveyor & chip bucket (Screw type)Spindle oil coolingNitrogen balance cylinder4th Axis or 5th AxisCompany information:FAQ:1. What is your product range?A : We specialized in Vertical Machining Center, CNC Lathe, Milling Machines, Lathes, Drilling Machines, Saws, Shapers and so on.2:What kind of controllers do you use on machines?A :Siemens, GSK, Fanuc, Syntec etc. You can choose as your request.3. What is your trade terms?A : FOB, CFR and CIF all acceptable.4 : How can I choose the most suitable machines ?A : Please tell me model or technical parameter you need, we can provide machine with the best price and quality.You can also send us product pictures and we will choose the most suitable machine for you.5: What's the payment terms ?A : T/T ,30% deposit when order ,70% balance payment before shipment ; Irrevocable LC at sight. 6. What about the after sale service?We provide one year warranty, if any parts broken, we will send you a new one for free.Also we provide online technical support, if any problems, pls contact me +86 18263289068 on Wechat, Whatsapp or telphone, I will help you solve in a short time.  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
