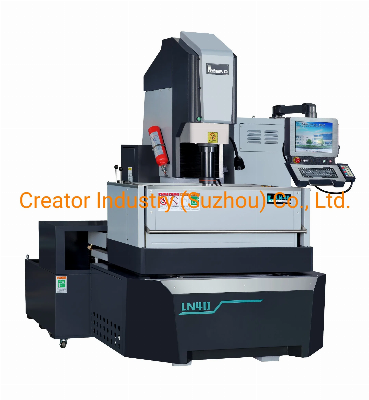

Mirror Processing CNC EDM Machine

Product DescriptionCreator CNC EDM Machines                                                                                                                                                - Mirror Finishing SeriesMain  Features:With high stability and high speed in fine processing, our machine could achieve really high efficiency in volume production.Graphite specific processing circuits.With special circuit deign that could make our machine achieved high performance on graphite processing.Special circuit design for Tungsten steel improve the efficiency in processing and the surface finish quality can be achieved Ra 0.3.Various kinds of electrode, mold processing ability.Location by absolute encoder: we can operate this machine without return to zero. Ensure the location of processing when the power supply of the machine was cut off abnormally.The industrial 4.0 EtherCAT communication processing scheme is adopted to process l0, motion, discharge and other signals in series, greatly reducing the impact of noise interference on the transmission process, and improving the reliability and correctness of the signal.Support the functions of touch panel, USB communication, and Ethernet communication, it can connect to the Internet through the network cable for remote assistance debugging, and FTP file transmission, and can directly view the running status of the machine online.Automation interface: with remote command transmission. machine positioning, processing, machine status feedback and matching for automatic processing schemeIndustrial control host is adopted, with good signal processing and operation stability.Support G code editing function to solve various complex processing path requirements.The positioning accuracy could reach nanometre(0.0001 mm).Support the C axis and ATC (Option).Support adjustment, diagnosis, and monitoring by remote control(Option)Detailed Photos Product ParametersCNC EDM MACHINE SPECIFICATONS(mirror processing )MODELLN30LN40LN60LN80Table Travel - X axismm330400600800Table Travel - Y axismm210300400500Table Travel - Z axismm300300350400Work Table Dimensions(L*W)mm600*400700*400900*5001000*600Distance Between Plate and Tablemm565/265535/235650/300850/450Work Tank Inner Dimensions(W*D*H)mm820*610*3841040*610*3841340*830*4951590*985*595Max. Tank CapacityLitre3304007001000Max. Electrode Weightkg5050100100Max. Workpiece Weightkg30040015002000Machine Dimensions(W*D*H) mm2030*2170*23401920*2100*23602200*2480*26002600*2640*2780Machine Weightkg2200260046005600CONTROLLERA3Max. processing currentA30A(For LN30 LN40)60A(For LN60 LN80)Input voltage3φV220.346.380.415Input powerKVA814Working voltageV90/100/12090/100/120High voltageV300300Min.ON TIMEμS0.50.5Min. OFF TIMEμS0.50.5Max. cutting speedmm3/min270580Surface roughnessμ mRa.≤0.07≤0.07Min. electrode wear rater%0.10.1Min. positioning resolutionμ m0.10.1Certifications Packaging & Shipping FAQQ:Are you manufacturer?A:Yes, we are manufacturer of CNC & ZNC EDM , Tire mold EDM ,CNC machine center.SGS field certified factory.Welcome to visit us!Q:How to choose the machine I want?A:Please correspond to the worktable travel & surface roughness & electrode wear & cutting speed & machining accuracy according to the size of the workpiece to find a suitable model.Q: What payment terms do you accept?A:We accept payment terms: T/T, L/C, etcQ:What kind of packaging do you offer?A:We use standard export plywood case for packaging.Q:How about the warranty?A:Creator machines enjoy 12 months warranty from B/L date.All spare parts can be dispatched by DHL in the earliest time after confirming damage,except for human purpose failures.Q:How about after service?A:Our engineers will reply to you with satisfactory solutions within 24 hours after receiving photos or videos of relevant problems.We are still providing services for Creator EDM machines that have been in use for more than 30 years.  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
