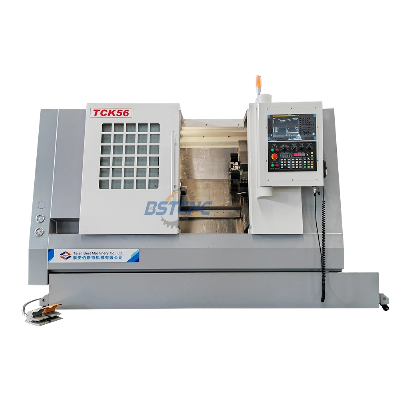

Tck56 High Precision Metal Turning Milling Slant Bed CNC Lathe Machine Tools

  Product DescriptionThe TCK series CNC lathe is a high-quality product designed and produced by our company to meet market development needs. This machine tool can process shaft and disc parts, turn threads, arcs, cones, and inner and outer surfaces of rotating parts, and perform efficient, large-scale, and high-precision processing on rotating parts.Standard configuration:-GSK988TA control system;-3-jaw 8'' hydraulic chuck and hydraulic station ;-8 station servo turret;-Hydraulic tailstock ;Optional configuration:-Siemens808D,Fanuc0i-TF, Syntec22TA, Mitsubishi;-10"hollow hydraulic chuck;-12 station hydraulic/servo turret;-Chip conveyor; -Auto servo bar feeder;-Parts catcher; Product ParametersItemUnitSpecificationRemarkMax.swing diameter over bedmm560 Max.processing lengthmm500 Max. processing diametermm350Horizontal 8-station turretStandard processing diameter mm280 Spindle head form A2-6Spindle unitSpindle boremm65 Bar through spindle boremm50 Main spindleSpindle speed ranger/min50~4500 Main motor powerkW11/15 X axis rapid feedm/min30 Z axis rapid feedm/min30 X axis travelmm200 Z axis travelmm550 Tailstock travelmm450 Tailstock sleeve travelmm100Tailstock sleeve taper MT5Cutting Tool sizeOuter circle cutting toolmm25×25 Boring tool diametermmФ40/Ф32/Ф25/Ф20 ATC choose the nearest tool  Yes Weightkg3600 Machine size(LxWxH)mm2800×1900×2000    Detailed Photos Packaging & Shipping Company Profile Cooperation Customers FAQ   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
