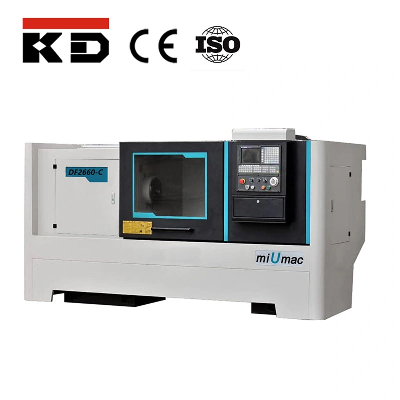

Flat Bed CNC Lathe Machine Ck6166/3000

 Flat Bed CNC Lathe Machine Ck6166/3000Product FeaturesProduct SpecificationsITEMSCK6166CK6156Max. swing over bedØ 660 mmØ 560 mmMax. swing over carriageØ 430 mmØ 330 mmWidth of bed  405 mmMaximum turned length  750/1000/1500/2000/3000 mmMax. turning length    650/900/1400/1900/2900mmSpindle noseD8A2-8Spindle boreØ 105 mmØ 80 mmCone hole diameter and taper of spindle holeØ 113 1: 20MT. No. 7Steps of spindle speed(Manual)4    (Variable Within Each Step )Range of spindle speed27~135    55~270    160~805    325~1630 r/minRapid feed for Axis Z10m /minRapid feed for Axis X8 m /minMax. travel of Axis Z720/970/1270/1970/2970mmMax. travel of Axis X365 mm320 mmMin. input0.001 mmTool post stations4-ways or 6-waysTool cross section32× 32 mmExternal diameterØ 75 mmTaper of boreMT. No. 5Max. Traverse150 mmPower of main motor11 KW7.5 KWPower of cooling pump  90WOverall dimensions(L× W× H)2250/2500/3000/3500× 1250× 1580 mm2250/2500/3000/3500/4500× 1200× 1520 mmNet weight2800/3100/3700/4300/5300 kg2700/3000/3500/4000/4600 kg   Company Profile  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
