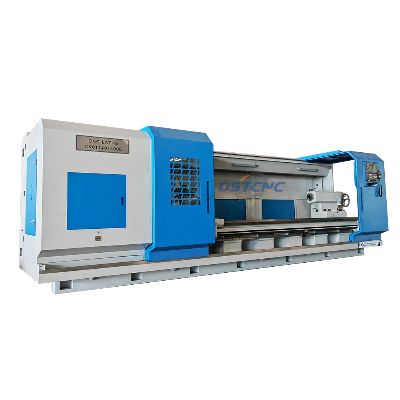

Ck61140 Pipe Heavy Duty CNC Metal Turning Milling Drilling Lathe Machine Tools

  Product DescriptionThis series CNC lathe is an economic machine tool  which capables of rough machining and finish machining with mechanical workpieces. Its main characters such as reliable structure , easy operating,  economical and practical, with comprehensive control system meet the performance needs of many industries. This series lathe is mainy used for the processing of the inner hole, end face, cylindrical surface, conical surface, threading of shafts ,discs and rotational parts. lt is widely used in auto industry industry because of its high efficiency and high precision machining features.Standard configuration:                                               Optional configuration:           -GSK980TC3 control system;                                                     -Siemens808D,Fanuc0i-TF, Syntec22TA.....           -3 jaws manual chuck ;                                                               -Hydraulic chuck, Pneumatic chuck ;           -4 station electric tool post ;                                                      -6/8/12 station electric tool post or Servo , hydraulic and power turret;               -Manual tailstock;                                                                        -Hydraulic / Pneumatic tailstock;           -Automatic lubrication;                                                                -Chip conveyor ;            -Coolant system;                                                                           -Full-closed metal house;           -Semi-closed metal house ;                                                                                                         Product Parameters  IitemsUnitCK61140Max dia.swing over bedmm1400Max dia.swing over cross slidemm1010Max.length of work-piecemm1500Width of bedmm755Spindle taper A2-15Spindle taper hole  Metric 1:20/150Spindle boremm140Power of spindle motorKw22/30Mode of spindle speed Three gears,smooth adjustmentL:10-50,M:50-115,H:115-300Max.traverse of X/ZMm/minX:720    Z: 1500Min.Feeding set unit of X/Z axismm0.001X/Z rapid traversemm/min4000/5000Tailstock Diametermm160Travelmm300Taper                          MT6Electric tool-postModel SLD170ANo.of tool stations Vertical four stationTool shank size mm40×40Turret indexing timeS4.1Chuck four jaws chuckPositioning accuracymm0.020Repositioning accuracymm0.01Overall dimensions(L*W*H)mm4700×2500×2600Machine weightKG12500      Detailed Photos                                                                                          Company Profile Cooperation Customers Packaging & Shipping FAQ /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
