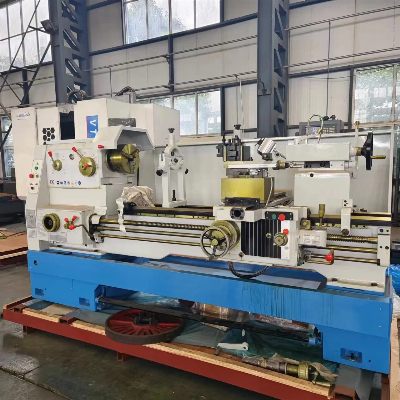

Portable Lathe Machine with Carbide Insert Ca6166

Product DescriptionSpecifications Specifications CA6140 CA6150 CA6161 CA6166 CA6180 Max. Work piece Diameter of Bed 400mm 500mm 610mm 610mm 800mm Max. Work piece diameter of tool holder 220mm 300mm 370mm 370mm 540mm Max.Work piece Length 750/1000/1500/2000/2200/3000/4000mm width of bed 400mm Cutter rod section 25×25mm Spindle axis Spindle speed range 16-1400rpm(24steps) Spindle bore 52mm ,(80mm),[105mm] Mores No.6(MT6)(Φ90 1:20)[Φ113:20] feed Feed Quantity (64 kinds)(for each) Metric thread (1-192mm) (44 kinds) English thread (1-24tpi) (21kinds) Modular thread 0.25-48(module 39 kinds) Diameter thread 1-96DP(37 kinds) Tailstock Tailstock spindle travel 150mm Tailstock spindle diameter 75mm Taper of tailstock spindle hole Morse NO.5 (MT5) Main motor 7.5KW(10HP) Package dimensions length 750mm 2440×1140×1750 length 1000mm 2650×1140×1750 length 1500mm 3150×1140×1750 length 2000mm 3650×1140×1750 length 2200mm 4030×1140×1750 length 3000mm 4800×1140×1750 length 4000mm 4800×1140×1750 weight Length G.W./N.W.(KG) Length 750mm 2170 /2060 Length 1000mm 2260/ 2140 Length 1500mm 2420 /2290 Length 2000mm 2790/ 2640 Length 2200mm 2940/ 2790 Length 3000mm 3450/ 3300 Length 4000mm 3750/ 3600  Detailed PhotosMain features1,Bed rail ultra audio quenching, long life.2,Bed grinding around the track, high precision.3,Spindle box gear precision grinding, low noise.4,Feed box sealed oil storage.5,Thread type and more.6,Tailstock locking thread, cam and use.7,Electrical safety performance, high reliability.8 ,With electromagnetic brake, the bed color can have a variety of options.9.very cost-effective,very enconomical.Factory /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
