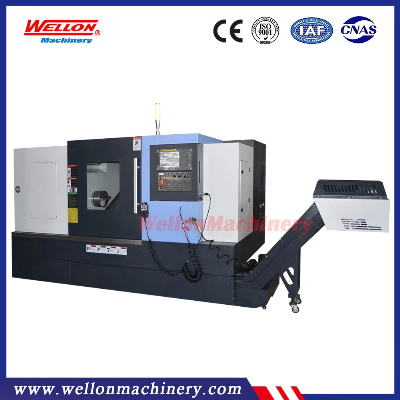

Tck500gp CNC Turning Milling Slant Bed CNC Lathe Machine

Product DescriptionSlant Bed CNC Lathe Machine Tck500gp CNC Turning MachineDetailed Photos Product Parameters Features:The machine is suitable to process all kinds of small and middle-sized shaft and plate work piece, and could also turn various threads, circle arc,circular arc ,circular cone,inside and outside surface of revolved body.This machine is widely used in sanitary,valve ,electricall appliance,instrument,automobile,motorcycle, bearings and so on.Higher accuracy Taiwan Linear guideways.High speed spindle unit.Higher rigidity cast iron.Integrated automatic lubrication30 degree One-piece casting slant bed.Technical parameter:SpecificationsTCK500GPMax.swing over bed (mm)Φ500Max.turning diameter (mm)Φ500Max.swing over cross slide (mm)Φ230Max.turning length (mm)750Spindle noseA2-6Chuck size8"Spindle motor power (kw)11-15Max.spindle speed (rpm)4200Spindle bore (mm)Φ66Max turning Dia Bar through spindle hole(mm)Φ52Slant bed angle30°X/Z axis leadscrew (mm)32/40X axis limit Travel (mm)270Z axis limit Travel (mm)810X/Z axis motor torque (N/m)11/11X/Z axis linear guideway (mm)45/45X/Z axis accuracy (mm)0.008X/Z axis repeat accuracy (mm)0.005Tailstock quill diameter (mm)Φ80Tailstock quill travel (mm)80Tailstock travel (mm)480Tailstock taperMT5Machine dimension (mm)4200x2000x2450Weight (kg)4200Standard accessoriesFanuc 0i TF controllerMain motor and Drive servo motors from FanucHollow hydraulic chuck from TaiwanHydraulic tail stockHydraulic turret 12 stations from TaiwanX,Z axis Linear roller type guide way TaiwanBall leadscrew TaiwanBearings from JapanMPGChain type chip conveyorCutting Cooling systemWork lampCentral auto-lubricating systemTri-color warning lampHeat exchanger in cabinetFull closed guardLeveling bolts and blocksTools and tool boxOptional accessoriesPower turret 12 positions C-axisY axis Axial power head Radial power headTool probe renishaw Air conditioner in cabinetBar feeder, servo motor type Automatic part catcher price   Company information Packaging & Shipping FAQ1: What's your main products of your company?A : We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .2:What kind of controlsdo you use on machines?A :Siemens,GSK ,Fanuc etc. You can choose according to your requirements .3. What is your trade terms?A : FOB, CFR and CIF all acceptable.4 : How can I choose the most suitable machines ?A : Please tell me the model or parameter you are interested in, we can provide you with the best price and quality.You can also send us product pictures and we will choose the most suitable machine for you.5 : Do we receive any updates while machine is in the manufacturing process?A : Of course. The progress of the machine will be updated regularly and sent to you.  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
