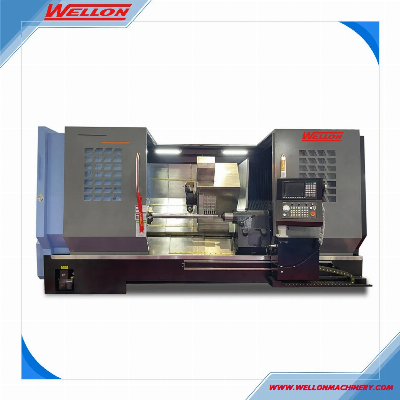

Tck700 Slant Bed CNC Lathe Center CNC Turning Machine

Products Description:Tck700 Tck800 Slant Bed CNC Lathe Center CNC Turning MachinePerformence Features:The machine is suitable to process all kinds of small and middle-sized shaft and plate work piece, and could also turn various threads, circle arc, circular arc ,circular cone,inside and outside surface of revolved body.This machine is widely used in sanitary,valve ,electricall appliance,instrument,automobile,motorcycle, bearings and so on.Higher accuracy Taiwan Linear guideways.High speed spindle unit.Higher rigidity cast iron.Integrated automatic lubrication45 degree One-piece casting slant bed.Technical parameter:SpecificationsTCK700Max.swing over bed (mm)Φ700Max.swing over cross slide (mm)Φ500Center distance (mm)1000/1500/2000/3000Spindle noseA2-8/A2-11Spindle motor power (kw)15/18.5Max.spindle speed (rpm)2500/1800Spindle bore (mm)88/105Max through bar diameter (mm)74/87Chuck size12"Bed slant angle45°X axis limit Travel (mm)350Z axis limit Travel (mm)1100/1650/2100/3000X/Z axis rapid moving (m/min)20/20X/Z axis leadscrew (mm)50/63X/Z axis linear guideway (mm)55/55X/Z axis drive motor torque (N/M)18/18X/Z axis position accuracy (mm)0.008X/Z axis repeat accuracy (mm)0.005Tailstock quill diameter (mm)150Tailstock quill travel (mm)150Tailstock taperMT5Machine dimension (cm)500/550/600/700*225*220Weight(kg)7000/7500/9000/11600Standard accessories:Fanuc 0i TF controllerMain motor and Drive servo motors from FanucHollow hydraulic chuckHydraulic tail stockHydraulic turret 12 stationsX,Z axis Linear guide wayBall leadscrewBearings from JapanMPGChain type chip conveyorCentral auto-lubricating systemWork lampTri-color warning lampHeat exchanger in cabinetFull closed guardLevelling bolts and blocksTools and tool box Optional accessoriesAir conditioner in cabinetPower turret 12 positionsC axisY axisExtra Axial power headExtra Radial power headTool probe ReneshawHydraulic steady restAutomatic part catcherCompany Information:Contact Us:/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
