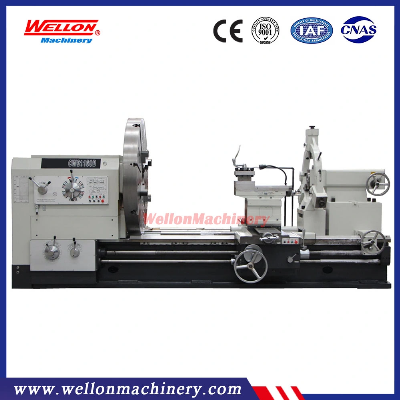

Product Description 130mm Big Bore Heavy Duty Lathe Machine CW61160B Product Parameters Performence Feature:This lathe are suitable for turning internal and external cylindrical, conical and swing surfaces as well as various metric, inch, module anddiametric pitch threads.They can also be used for broaching oil grooves and keyways. There are also following features:1. Box type internal structure, of high rigidity , with hardened guideway. The precision is stable.And can carry out strong force cutting.2. On apron,there is a device, operated by a single lever, used for rapid traverse of the carriage.3. The saddle guideway is glued by 'TSF' soft belt wear resisting materials.4. The top slide can be used independently for turning of short cone, in combination with longitudinal feeding, it can also turn long taper surface.Technical parameter:SpecificationsunitCW61160BMax swing over bedmm1600Max swing over carriagemm1200Center distancemm1500/3000/4000/5000/6000Spindle bore and nosemm130 C15Bed widthmm755Spindle tapermmMT6Spindle speed and stepsr/minCW:21 steps 3.15-315CCW: 12 steps 5-4004 jaw chuck diametermm1000Longitudinal feed and rangemm/r56kinds 0.1-12Traverse feed and rangemm/r56kinds 0.05-6Rapid moving speedmm/min3740Lead screw pitchmm12Metric threadmm44kinds 1-120Inch threadt/in31kinds 28-3/8Module threadmm45kinds 0.5-60Diametral pitch threadDP30kinds 56-1Cross slide travelmm700Top rest travelmm300Tool post 4 positionsTool shrank sizemm45X45Tail stock sleeve diamm140Sleeve travelmm300Sleeve taper MT6Main motor powerkW22Rapid feed motor powerkW1.5Coolant pump motor powerw125Machine width and heightmm2250X2150Machine length 1500mm46003000mm61004000mm71005000mm81006000mm9100Machine net weight 1500kg131003000kg140004000kg150005000kg160006000kg17000Max loading capacity 1500kg60003000kg65004000kg70005000kg75006000Kg8000Standard accessories:4-jaw chuck4-station tool holderSteady restFollow restDead centersReducing sleeveCoolant systemHalogen work lampOperating toolsOperator ManualOptional accessories:Digital readoutChuck guardLive center Company information /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
