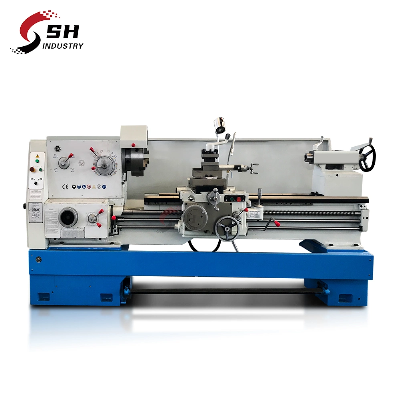

Ca6166 Ca6266 Precision Bench Horizontal Conventional Lathe Machine

CA6166 CA6266 Horizontal Conventional Lathe MachineProduct DescriptionCharacteristics:1  Machine tool head box and bed, tailstock, Supporting plate, etc. the combination of surface between manual scraping, machine to undergo a rigorous inspection, effectively ensure the machine tool accuracy and stability.2  Machine adopts high strength cast iron, copper and chromium special materials are added, the bed width 400mm, bed rail quenching depth up to 4mm, effectively improves the abradability and stability of the machine.3  The machine tool bed head box lubrication uses the pump to carry on the circulation forced lubrication, in view of the south hot weather, has guaranteed the bed head box cleanliness and the heat radiation characteristic, has effectively extended the bearing and gear's service life.4  Wafangdian Bearing is used in machine tool spindle, the spindle through hole diameter 80mm, machine tool gear with precision grinding, can effectively improve the hardness of the gears, to reduce noise of the machine.5  Machine tool uses the domestic brand lead screw, the silk mother uses the high quality bronze alloy to guarantee the wear-resisting property and the precision maintenance.6  The machine adopts high strength four station turret shank size: 25x25mm.Application:1  CA series ordinary horizontal lathe is used to turning internal and external cylindrical surface, conical surface, and other rotating surface, turning various metric and inch, modulus and pitch thread, and the pitch diameter of the thread and pull the drilling and oil tank etc., is general very strong horizontal lathe, Widely applicable batch processing of various shaft and disc parts.2  The series lathe bed width in general lathe, 400mm rail width has higher stiffness, rail surface by intermediate frequency quenching, wear-resistant durable.3  Handy machine operator concentration, slide plate is provided with a quick moving mechanism. Using single handle operation, humanization.4  The rigidity of the machine tool structure and the transmission stiffness are higher than the general lathe, the power utilization rate is high, which is suitable for the strong cutting.5  Before leaving the machine tool factory, the machine tool is tested strictly according to the inspection procedure, and the machine tool is tested to ensure that the machine tool has good stability and reliability.Main technical specifications:SpecificationsCA6166 CA6166B CA6166CCA6266 CA6266B CA6266CMax. Swing over bed660mmMax. Swing over carriage400mmMax. swing in gap--880mmEffective gap length--210mmMax. length of work piece750mm/1000mm/1500mm/2000mm/2200mm/3000mm/4000mmWidth of bed400mmSection of turning tool25x25mmSpindleSpindle speeds10-1400rpm/16-1400rpm(24steps)Hole through spindle52mm. (B:80mm). [C:105mm]Spindle taperNO.6(MT6)(B:Φ90 1:20)[C:Φ113 1:20]FeedNumber of feeds64(kinds)(for each)Range of metric threads(kinds)(1-192mm)44kindsRange of inch threads(kinds)(2-24tpi)21kindsRange of module threads(kinds)0.25-48(Moduie39kinds)Range of  pitch threads(kinds)1-96DP(37kinds)TailstockMax. tail stock spindle travel150mmTail stock spindle diameter75mmTaper of tail stock spindle center holeNO.5(MT5)Main motor7.5KW(10HP)Packing dimensions (L*W*Hmm)Overall dimensions for750mm2550x1140x1750Overall dimensions for1000mm2700x1140x1750Overall dimensions for1500mm3200x1140x1750Overall dimensions for2000mm3700x1140x1750Overall dimensions for2200mm4030x1140x1750Overall dimensions for3000mm4850x1140x1750Overall dimensions for4000mm5800x1140x1750Weight (kg)LengthG.W  N.W.Weight for 750mm2380  2260Weight for 1000mm2570  2450Weight for 1500mm2810  2640Weight for 2000mm3050  2880Weight for 2200mm3390  3180Weight for 3000mm3930  3687Weight for 4000mm4580  4200Detailed Photos Company ProfileCertifications FAQ1: Where is your company A: Our company is located in Tengzhou City, Shandong Province.2: What about your warranty?A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free3: How do you offer after-sale service?A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems4. What is your standard package? A: Our package is export standard plywood case with pallet.5: What's the Payment Terms? A: T/T, 30% initial payment when order, 70% balance payment before shipment; 6: What's the MOQ? A: 1 set. /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
