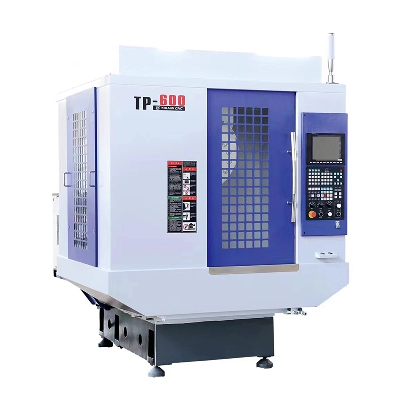

Product Description1. All machine tool castings are made of high-grade Mihanna iron Fc-30.2. The superhard cast iron ensures the long-term accuracy of the machine tool.3. The honeycomb design structure greatly improves the vibration resistance and rigidity of the machine tool.Ensure the tempering process and strengthen the stability of castings.4. All machine tools are subject to strict accuracy testing before leaving the factory:A Laser measurement system is adopted, which can detect the positioning accuracy of the machine, pitch and backlash compensation.B The statistics and dynamics of circle test can lock the errors of the machine in all aspects.5. The main shaft is grease lubricated and equipped with P4 grade (7 pieces in total) high-speed precision bearings.Product Parameters YJM-TP600 drilling center mechanical parametersNO.NameParameter1X.Y.Z AXIS TRAVEL (mm)600*400*3502Spindle nose to countertop (mm)135-4853Spindle center to column (mm)4204Table size (mm)700*4205T-slot (number of slots * slot width * spacing) (mm)14*3*1256Maximum load of the table (kg)3007Spindle speed (mm/min)200008Spindle taperBT309G/I/z axisDirect connection10Z-axis counterweightnot11Rapid shift speed (m/min)48/48/4812Ball screw diameter/pitch (mm)R32-16K C313Three-axis rail specificationsMSA30/MSA30/MSA35 Z-axis rollers14Axial positioning accuracy (m/min)±0.005/30015Repeatable positioning accuracy (m/min)±0.00416Minimum movement value (mm)0.000117The required air pressure (kg/cm2)618Power capacity (KVA)1519Coolant capacity (L)22020Lubricating oil capacity (L)BT-CP2/4L21Machine weight (T)2.822Machine dimensions (L×W×H) (mm)2000*2000*2400NOTE:For more detailed parameters, please contact us at any time. Detailed PhotosFinished Products DisplayProduct Recommendation Company ProfileXiongyi intelligent machinery (Changzhou) Co., Ltd. is a limited liability company with independent legal personality approved by the Administration for Industry and commerce. The company is composed of high-precision CNC professional and technical personnel and senior people in the machine tool industry. It is familiar with the market of machine tool industry at home and abroad and has many partners in the industry.The company mainly sells the operation and technical services of Taiwan, China (JINN FA) brand equipment and domestic advanced CNC machine tools, machine tool accessories and precision tools.In line with the company philosophy of "integrity-based, unity of knowledge and practice, win-win future" and the purpose of "customer first, quality first", we make full use of our technical connotation and extensive external information resources, We should exploit the essence of machine tool brands, provide users with high quality CNC equipment that meet user's requirements and product processing needs, and do everything we can to help users improve productivity, competitiveness and increase profits. The company strives to become a friend of every customer and partner, and is willing to go hand in hand with you to create a better future.CertificationsPackaging & ShippingFAQ1.What is your minimum order quantity and warranty?MOQ is one set, and warranty is one year.2.What CNC system do you use?FANUC, SIEMENS, MISTSUBISHI, GSK,SYNTEC. It depends on your choice.3:How can I choose the most suitable machines?A: Please tell me your specifications ,we can choose the best model for you, or you can choose the exact model. You can also send us the products drawing ,we will choose the most suitable ma-chines for you.4: What's your main products of your company?A: We specialize in selling all kinds of machine tools, such as CNC lathes, CNC milling machines, vertical machining centers, lathes, Swiss-type lathes, grinding machines and special fixtures for machine tools, tools, nonstandard fixtures, tools5: Where is our factory located? How can I visit there?A :Our company is located at C307, Block C, Boyunhui, No. 18, Xingao Road,Niutang Town, Wujin District, Changzhou City, Jiangsu Province, China. You are warmly welcomed to visit us.6. What is your trade terms?A: FOB, CFR and CIF all acceptable.7: What's the Payment Terms?A: T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
