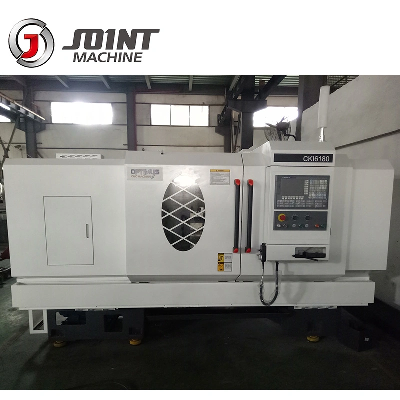

High Precision Cki6180 Heavy Duty Cutting Horizontal CNC Lathe Machine

  Product Introduction:  This series of lathe machine is suitabloe for processing axis part, arcs, thread, cone and the face of inner and outer of rotating bodies. CKI-6150 model and the above models can achieve and satisfy heavy duty cutting requirements. Product features:1. Horizontal guideway structure, resin sand casting, high rigidity; Guide rail quenching and fine grinding, high precision, durability. 2. Integral gear box type large aperture spindle single, three support, high rigidity structure, suitable for have cutting.  3. Spindle frequency conversion or servo, can achieve constant linear speed turning. 4. Head stock gear set and spindle for models 6150 and above are fine grinded with noise bottom. 5. Model 6163/6180, widen the guide rail, enhance the rigidity of the fuselage, improve the cutting strength. Product specifications:  ItemUnitCKI-6180Max swing over bed mm800Max turning diameter on carriage mm520Max processing lengthmm1000/1500/2000/3000/4000/5000Guideway widthmm550Spindle motor ratekw11Spindle max rotation speed rangerpm40-125  110-350   290-950Spindle hole diametermmØ105Spindle box variable speed structure Three variable frenquencySpindle head/ taper hole form C-11/1:20X axis max travelmm400Z axis max travelmm1000/1500/2000/3000/4000/5000Carriage 4 positions/ 6 positions electric tool turretX axis rapid movementmm/min6Z axis rapid movementmm/min8Sleeve diametermm100Sleeve travelmm250Tailstock sleeve taper hole Mohs 5Center heightmm1000/1500/2000/3000/4000/5000Dimension (L*W*H)mm3500*1500*1700(1m)Weight Kg4100/4500/5800/6000/6300/7000Product details: Package:  Company Information:      Shenzhen Joint Technology CO.,LTD., was established in 1995. One of our headquarters is located in PingHu town, Shenzhen City ,Guangdong province ,China, we are dedicating to research and development, production, sale, and service of mold processing machine tools and specialized machine tool equipments for machine work of excellent quality for more than two decades.      There are eight series of products-high speed turret milling machine, precision surface grinding machine, EDM machine tool, CNC milling machine, NC milling machine, Gantry type machine center, CNC engraving machine, and CNC lathe machine Our own brand "JOINT " Has been the top quality machine's signal in domestic sales, JOINT also has been recognized as " GUANGDONG Famous Brand ", and milling machine was recognized as " TOP 10 Famous Brand of Milling machine " in China. Our product had been exporting to Europe, South America, Southeast Asia, the middle east etc, and enjoyed a good reputation there, Welcome your visit !        /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
