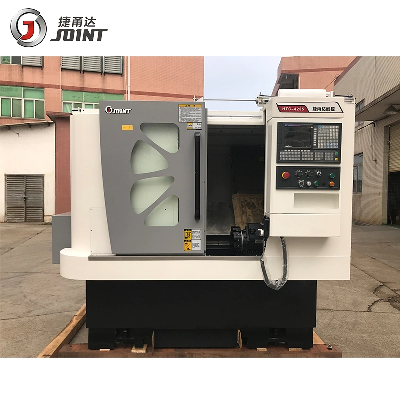

420 Swing Diameter Common Model Lathe Machine for Small Parts

  Product Introduction:   It is equipped with Taiwan sleeve spinde, with the characteristics of high precision, high rotation speed, stability, and it also can equipped with hydraulic chuck or elastic chuck, effectively save time of clamping. It adopts Taiwan hydraulic tool turret, through which can change tool fastly, process stable.    This series of lathe is suitable for processing axis parts, thread,arcs, cones and inner and outer surfaces of ratating bodiies. Widely used in automobile industry, electronic industry, motorcycle, household appliances, furniture, lighting and other industries of the processing of rotating products.  Product features:1. Slant type bed used with high quality of casting, high stability of construction design, suitable for processing required with high rotation speed and rapid feed.2. X and Z axis two direction guide rail adopts linear guide rail pair, two axis fast forward speed up to 20m/min.3. Integral high speed spindle, insuring high precision cutting performance.4. Coupling, bearing, ball screw, linear guideway these key parts adpts German, Japan, Taiwan top brand, ensuring its quality and stability.5. Adopts auto lubrication system to reduce wear on sliding part and improve the accuracy of equipment retention.6. Can use gang type tools, which is suitable for batch precisive processing. Product applicant:                         Auto part                                                        Communication equippment                                         automation equippment                        Product details: Product specifications:  ItemUnitHTC-4235Max swing over bed mm420Max turning diameter on carriage (mm)120Max processing diameter over carriage(mm)330Spindle head form (optional with chuck) A2-5(6'')Spindle motor ratekw5.5Spindle max rotation speedrpm5000Spindle hole diametermmØ56Work piece bar diametermmØ45X axis max travelmm470Z axis max travelmm350Chuck power 6'' hydraulic chuckCarriage Gantry type /4 positions electric tool turret*/ 6 positions or 8 positions electric tool turretTool turret center heightmm63X axis rapid movementmm/min20Z axis rapid movementmm/min20Machine bed form and slope The whole 45°Dimension (L*W*H)mm2200*1940*2140Weight Kg2400Standard accessories:1. GSK980TDI control system and 5.5kw GSK servo spindle motor2. Taiwan A2-5 spindle, spindle hole 56, imported bearing and ball screw, linear guideway, 3000rpm 3. 6'' Chinese hydraulic chuck4. 3 pcs gantry type tool 5. Fully closed cover6. Auto lubrication system7. Cooling system8. Hand unit9. Working light10. Manual tailstock11. Technical documents12. Accompanied toolboxOptional accessories: 1. SYNTEC 22A system and servo motor, and SYNTEC matched spindle motor2. FANUC OITF(5) system3. 8'' hollow hydraulic chuck change to 10'' hollow hydraulic chuck 4. 4 positions electric tool turret5. 8 positions Chinese servo tool turretPackage:  Company Information:      Shenzhen Joint Technology CO.,LTD., was established in 1995. One of our headquarters is located in PingHu town, Shenzhen City ,Guangdong province ,China, we are dedicating to research and development, production, sale, and service of mold processing machine tools and specialized machine tool equipments for machine work of excellent quality for more than two decades.      There are eight series of products-high speed turret milling machine, precision surface grinding machine, EDM machine tool, CNC milling machine, NC milling machine, Gantry type machine center, CNC engraving machine, and CNC lathe machine Our own brand "JOINT " Has been the top quality machine's signal in domestic sales, JOINT also has been recognized as " GUANGDONG Famous Brand ", and milling machine was recognized as " TOP 10 Famous Brand of Milling machine " in China. Our product had been exporting to Europe, South America, Southeast Asia, the middle east etc, and enjoyed a good reputation there, Welcome your visit !            /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
