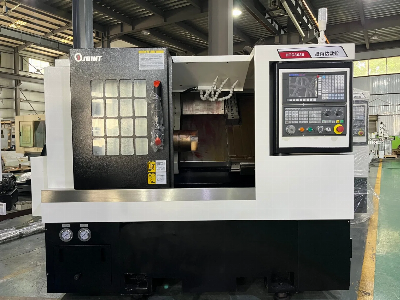

Small Part High Precision High Accuracy Slant Bed Lathe Machine

  Product Introduction:    This series of high speed CNC lathe machine adopts imported or domestic high performance control system and its matching motor and drive, satisfying two axes linkage proessing. They are equiped with precisive level sleeve type spindle, with characteristics of high precision, high rotation speed, stable operation. And they are optional with hydraulic chuck and spring collet, saving clamping time effectively. If using hydraulic tool turret, it can change tool fast, operate smoothly.    This series of lathe is suitable for processing axis parts, thread,arcs, cones and inner and outer surfaces of ratating bodiies. Widely used in automobile industry, electronic industry, motorcycle, household appliances, furniture, lighting and other industries of the processing of rotating products.  Product features:1. Slant type bed used with high quality of casting, high stability of construction design, suitable for processing required with high rotation speed and rapid feed.2. X and Z axis two direction guide rail adopts linear guide rail pair, two axis fast forward speed up to 20m/min.3. Integral high speed spindle, insuring high precision cutting performance.4. Coupling, bearing, ball screw, linear guideway these key parts adpts German, Japan, Taiwan top brand, ensuring its quality and stability.5. Adopts auto lubrication system to reduce wear on sliding part and improve the accuracy of equipment retention.6. Can use gang type tools, which is suitable for batch precisive processing. Product applicant:                         Auto part                                                        Communication equippment                                         automation equippment                        Product details: Product specifications:  ItemUnitCKH-3630Max swing over bed mm360Max turning diameter on carriage (mm)120Max processing diameter over carriage(mm)230Spindle head form (optional with chuck) A2-5(6'')Spindle motor ratekw5.5Spindle max rotation speedrpm6000Spindle hole diametermmØ56Work piece bar diametermmØ45X axis max travelmm400Z axis max travelmm300Chuck power 6'' hydraulic chuckCarriage Gantry type /4 positions electric tool turret*/ 6 positions or 8 positions electric tool turretTool turret center heightmm63X axis rapid movementmm/min20Z axis rapid movementmm/min20Machine bed form and slope The whole 45°Dimension (L*W*H)mm2200*1940*2140Weight Kg2400Package:  Company Information:      Shenzhen Joint Technology CO.,LTD., was established in 1995. One of our headquarters is located in PingHu town, Shenzhen City ,Guangdong province ,China, we are dedicating to research and development, production, sale, and service of mold processing machine tools and specialized machine tool equipments for machine work of excellent quality for more than two decades.      There are eight series of products-high speed turret milling machine, precision surface grinding machine, EDM machine tool, CNC milling machine, NC milling machine, Gantry type machine center, CNC engraving machine, and CNC lathe machine Our own brand "JOINT " Has been the top quality machine's signal in domestic sales, JOINT also has been recognized as " GUANGDONG Famous Brand ", and milling machine was recognized as " TOP 10 Famous Brand of Milling machine " in China. Our product had been exporting to Europe, South America, Southeast Asia, the middle east etc, and enjoyed a good reputation there, Welcome your visit !            /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
