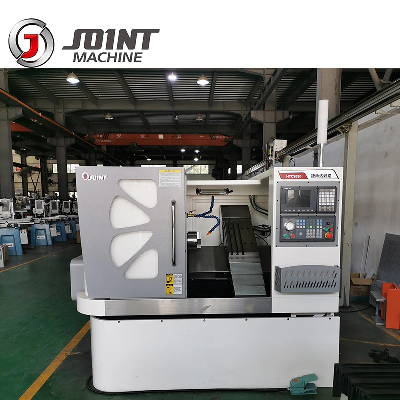

Small Metal Cutting Economical Slant Bed CNC Horizontal Turning Lathe

Product Introduction: This series slant type high speed CNC lathe machine adopts domestic or imported high performance controller, matched drive and motor, achiving two axes linkage machining. Equipped with Taiwan sleeve spindle, with characteristics of high precision, high rotation speed, smooth operation, and is optional with hydraulic chuck and elastic clamp, through which effecitvely save the time of clamping workpiece.  Product features:1. slant type one piece casting, two axes linear guideway, suitable for high precision processing. 2. Taiwan high precision linear guideway, ensuring for stable accuracy3. adopts Taiwan high precision spindle, Japan precisive bearing.4. Can equipped with medium solid or medium hollow hydraulic chuck, hydraulic station and oil tank (Taiwan)5. Can equipped with chain type auto chip conveyor6. Can equipped with electric tool turret, hydraulic tool turret and servo tool turret.7.  GSK/ KND control system.Product specifications:  ItemUnitHTC-3630Max swing over bed mm360Max turning diameter on carriage (mm)120Max cutting length(mm)230Spindle motor rate(KW)5.5Spindle head form A2-5Hydraulic chuck diametermm8''Spindle max rotation speedrpm4500Spindle hole diametermmØ56Work piece bar diametermmØ45X axis max travel 400Z axis max travel 300X/Z axis connection way Direct connectionX/Z axis max rapid movement speedm/min20/20X/Z axis rapid position accuracymm0.004/0.006Tool turret center heightmm63Dimension (L*W*H)mm2070*1615*1770Weight Kg2400Product applicant:  Company Information:      Shenzhen Joint Technology CO.,LTD., was established in 1995.One of our headquarters is located in PingHu town, Shenzhen City ,Guangdong province ,China, we are dedicating to research and development, production, sale, and service of mold processing machine tools and specialized machine tool equipments for machine work of excellent quality for more than two decades.      There are eight series of products-high speed turret milling machine, precision surface grinding machine, EDM machine tool, CNC milling machine, NC milling machine, Gantry type machine center, CNC engraving machine, and CNC lathe machine Our own brand "JOINT " Has been the top quality machine's signal in domestic sales, JOINT also has been recognized as " GUANGDONG Famous Brand ", and milling machine was recognized as " TOP 10 Famous Brand of Milling machine " in China. Our product had been exporting to Europe, South America, Southeast Asia, the middle east etc, and enjoyed a good reputation there, Welcome your visit !          /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
