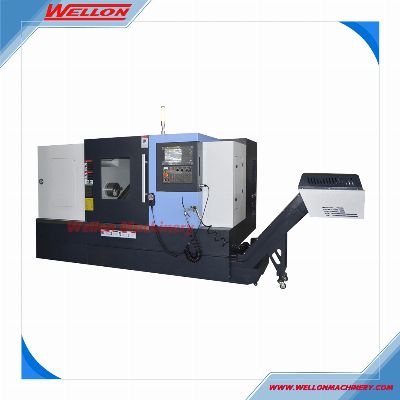

Slant Bed CNC Horizontal Lathe Machine Tck500gp Turning Center

Products Description:TCK500GP slant bed CNC turning lathe machinePerformence Features:This series of machine tools uses a 30° inclined overall bed, and the bed material is HT300. Using resin sand art casting, internalThe rib layout is reasonable. The guide rail adopts imported linear roller guide, which has improved feed accuracy, low friction resistance, good rigidity, andVibration and deformation resistance is high, allowing users to obtain higher accretion accuracy and faster moving speed, and obtain higherProduction efficiency.Higher accuracy Taiwan Linear guideways.High speed spindle unit.Higher rigidity cast iron.Integrated automatic lubrication30 degree One-piece casting slant bed.Technical parameter: SpecificationsTCK500GPMax.swing over bed (mm)Φ500Max.turning diameter (mm)Φ500Max.swing over cross slide (mm)Φ230Max.turning length (mm)750Spindle noseA2-6Chuck size8"Spindle motor power (kw)11-15Max.spindle speed (rpm)4200Spindle bore (mm)Φ66Max turning Dia Bar (mm)Φ52X/Z axis leadscrew (mm)32/40X axis limit Travel (mm)270Z axis limit Travel (mm)610X/Z axis motor torque (N/m)11/11X/Z axis linear guideway (mm)45/45X/Z axis accuracy (mm)0.008X/Z axis repeat accuracy (mm)0.005Tailstock quill diameter (mm)Φ80Tailstock quill travel (mm)80Tailstock travel (mm)480Tailstock taperMT5Machine dimension (mm)2100x1386x1435Weight (kg)2700Standard accessories8" Hollow hydraulic 3 jaw chuck from TaiwanHydraulic tail stockservo turretBall leadscrew PMIBearings for X,Z : FAG-P4Drive servo motors from FanucSpindle motor CTBFanuc 0i TF Control systemMeasuring armMPGChain type chip conveyorCutting Cooling systemWork lampCentral auto-lubricating systemTri-color warning lampHeat exchanger in cabinetFull closed guardTools and tool boxLeveling bolts and blocksSpindle bearing by NSK Optional accessoriesSpindle bearings from NSKMeasuring armDriven tools axialDriven tools radialTailstock hydraulic moving (R axis)Tailstock with leadscrew and linear guideway (R axis)Turret with Y axisX,Z axis linear guideway Roller type Company Information:Contact Us:/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
