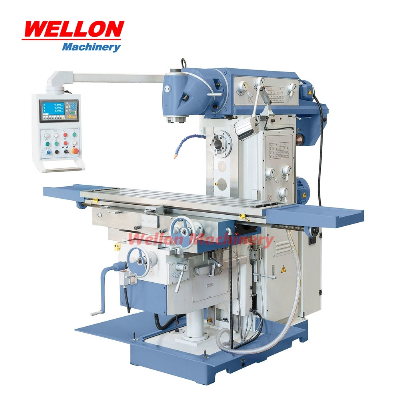

Products Description:Performence Features:Logical, clearly arranged gearshift for speed changeHardened and polished guide ways guarantees top accuracySetting of the required feed speed by potentiometer on the control panelFinely graduated feeds in all axis, driven by servo motorUniversal mill head system 'Huron' adjusts to various anglesComplete with rapid feed in x-, y- and z-axis to reduce downtimeOptimal adjustments of spindle speed and feed allow for economic machining of various materialsTechnical parameter:SpecificationsUnitXL6436Table sizemm1325×360Table travel (X/Y/Z)mm750/320/460Table feed speed X axismm/min30~750Table feed speed Y axismm/min20~500Table feed speed Z axismm/min15~375Spindle taper 7:24 IS050 (H)7:24 IS050 (V)Arm travelmm550Distance between spindle nose and table surfacemm196-656Distance between horizontal nose and table surfacemm20-480Distance between spindle axis and arm surfacemm200Spindle speed ranger.p.m12 steps 60-1750 (V)12 steps 60-1800 (H)T-slots(NO./width/pitch)mm3/18/80Main motor powerKw5.5 (H) 4 (V)AC servo feed motor torqueN.m10Overall sizemm1800×2100×2000Net weightkg2685 Standard Accessories:Draw barCoolant deviceCoolant trayUniversal mill headAutomatic central lubricationMill arborsToolsOptional Accessories:3-axis digital readoutMill chuck setMachine viceHorizontal & vertical rotary tableClamping kit set 58-pcsUniversal dividing headLED machine lightCompany Information:Contact Us:/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
