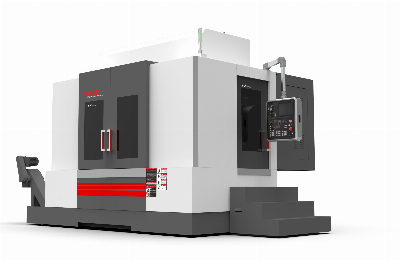

Tz-1300b High-Precision CNC Drilling Tapping Machine CNC Machine Center

TZ-1300B CNC Machine Center Vertical Milling/Driling/Tapping Machine tools  Product DescriptionTAIZ  high-speed drilling and tapping machining center series products are developed based on the most popular and advanced international flexible machine tool design concept, with the main purpose of addingDrilling and tapping processes for non-ferrous metals, 3C industry, aluminum substrate, etc. It can achieve drilling and milling processing, with fast movement speed and high spindle speed. The efficiency and quality of drilling and tapping are more than 10 times that of ordinary machining centers, making them the most ideal for customers in industries such as 3C and communication industrial equipment.    Product Parameters  SpecificationTZ-640B TZ-740BTZ-1000BWorktable   Worktable size (L×W)700x400mm 800X420mm1100X500mmWork table Max. loading300kg300kg350kgT-slots size (N×W×D)3x14x125 mm3X14X125mm5X18X80mmAxial feed   X/Y/Z axis travel600/400/330mm 700X450X300mm1000X500X330mmX/Y/Z axis feed speed48/48/48m/min48/48/48m/min48/48/48m/minX/Y/Z axis motor1.5/1.5/3kw1.5/1.5/3kw2/2/3kwX/Y/Z axis motor connection modeThe coupling is directly connectedThe coupling is directly connectedThe coupling is directly connectedSpindle   Spindle taperBBT30(Reinforced direct connected spindle)BBT30(Reinforced direct connected spindle)BBT30(Reinforced direct connected spindle)Spindle power5.5kw5.5kw5.5kwMax. spindle speed20000rpm20000rpm20000rpmDistance from spindle nose to workbench125-445mm150-450mm150-480mmA.T.C system   Tool magazine capacity21T (Optional 16T)21T (Optional 16T)21T (Optional 16T)Tool change time1.2s1.2s1.2sPositioning accuracy (National standard)   Positioning accuracy (X/Y/Z)±0.003/300mm±0.003/300mm±0.003/300mmRe-positioning accuracy(X/Y/Z)±0.002/300mm±0.002/300mm±0.002/300mmMachine dimension   L×W×H1860×2500×2700mm1900X2500X2700mm2700X2500*2350mmMachine weight3700kg3800kg4800kg   Detailed Photos 1. The classic TZ-640B vertical extra bed is of high quality, stable and reliable, easy to use and maintain.2. The bed and the main components are made of high-quality Yunnan cast iron with high specifications, which is greatly improved by advanced resin sand casting process it improves the shock resistance and precision stability of the machine tool, and ADAPTS to high-strength and high-precision machining.3. The key structural parts of the machine tool are made of pentahedral machining center, gantry guide grinding, special boring and milling horizontal addition and other large imported high-precision CNC Equipment processing, excellent technology, high precision.  4. Using imported high-precision spindle bearings, the overall assembly of the spindle is assembled in Taiwan to ensure the high precision of the spindle. Main shaft transmission.  5. The feed system adopts a linear ball guide rail, which can achieve precise and rapid movement and positioning, while increasing the wear resistance of the moving parts of the machine tool, enhancing impact resistance, and improving the service life of the machine tool.     6. The ball screw bearing is an imported specialized screw bearing, greatly improving the axial rigidity, accuracy, and impact resistance of the feed shaft.7. The ball screw and AC servo motor shaft adopt imported couplings for seamless direct transmission, ensuring accurate positioning of mechanical movement.8. Configure an automatic lubrication system to provide timed and quantitative lubrication for the guide rail and ball screw.  9. The CNC system and drive unit are mature products of well-known brands; PLC has been applied for many years, ensuring safety and reliability; Machine tool electrical equipmentJijingdang, process specifications, and electrical appliances are all European brands, with low faults and durability.10. The machine tool assembly process is precise, and the motion part is corrected by laser interferometer and ball and rod instrument to achieve stable machining accuracy, Mechanical accuracy far superior to national standardsOur Advantages  Application• Taiz CNC machine center integrates the function of milling, drilling and tapping• CNC Machining for various size of the metal profile, such as aluminum, steel, copper and non-metal materials• CNC Vertical Machine tools is widely used in industries of 3C electronics, rail transportation, aerospace,  liner module guide rail and etc.Company ProfileGuangdong Taizheng Intelligent Equipment Co., Ltd.was established in June 2010,is a set of intelligent equipment research anddevelopment, production, sales and service in one of the national high and new technology enterprise, the product has the high speeddrilling iron machining center, vertical machining centers, horizontal machining center, gantry machining center, pentahedron mach-ining centers and other series of precision machining equipment. After years of development, it has become one of the largest machinetool manufacturers in Taiwan and Mainland China. Company since its inception,adh
