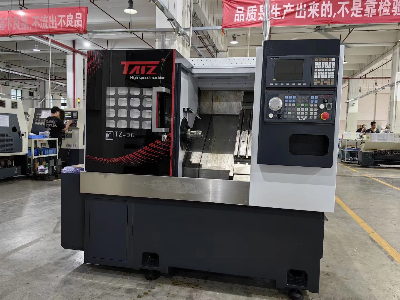

Horizontal CNC Lathe Machine Center Metal CNC Turning Center

CNC Lathe Machine CNC Turning Center  Product DescriptionTAIZ  high-speed lathe and turning machining center series products adopting an integral sleeve spindle, imported precision grade spindle bearings for the front three and rear two, and spindle servo motor drive to achieve high precision, high rigidity, and speed stability. Cast iron base, inclined bed, good rigidity, convenient operation and chip removal, high-precision linear slide, precision ball screw. The bed is tilted at 30 ° or 45 °, and is made of high-quality cast iron resin sand. It has a compact rib plate structure with good rigidity and strong seismic resistance.   Product Parameters  SpecificationTZ-CX5052TZ-CX5075Spindle  Max upper return dia of bed 570mm 570mmMax turning dia500mm500mmMax turning length520mm750mmSpindle End TypeA2-6 (8inch)A2-6 (8inch)Spindle motor power11-15kw11-15kwMax rotating speed4200rpm4200rpmDia of spindle hole66mm66mmMax. Bar Through Dia.52mm52mmAxial feed  X/Z axis screw rod spec.3210/40103210/4010X axis limit stroke270mm270mmX axis motor torque11 N.M11 N.MZ axis limit stroke610mm810mmZ axis motor torque11 N.M11 N.MX/Z axis connect modedirectly connectdirectly connectA.T.C system  Tool Turret Type100-12T100-12THeight dimension of tool turret center100mm100mmQuill diameter80mm80mmQuill stroke80mm80mmMachine dimension  L×W×H2580×1950×1950mm2580X1950X1950mmMachine weight3000kg3000kgMain partsNo.Parts NameBrands/Origin1CNC systemTAIWAN2SpindleTAIWAN3Ball screwJAPAN C3THK4RailJAPAN THK5Screw bearingJAPAN P4NSK6Electronic componentsFRANCH 7Pneumatic componentsTAIWAN/ JAPAN8CouplingJAPAN NBK/ TAIWAN HWDetailed Photos   Our Advantages  Application• Taiz CNC machine center integrates the function of milling, drilling and tapping• CNC Machining for various size of the metal profile, such as aluminum, steel, copper and non-metal materials• CNC Vertical Machine tools is widely used in industries of 3C electronics, rail transportation, aerospace,  liner module guide rail and etc.Company ProfileGuangdong Taizheng Intelligent Equipment Co., Ltd.was established in June 2010,is a set of intelligent equipment research anddevelopment, production, sales and service in one of the national high and new technology enterprise, the product has the high speeddrilling iron machining center, vertical machining centers, horizontal machining center, gantry machining center, pentahedron mach-ining centers and other series of precision machining equipment. After years of development, it has become one of the largest machinetool manufacturers in Taiwan and Mainland China. Company since its inception,adhere to the "diligence, quality, innovation, win-win"concept of value, constantly explore innovative, whole image into the pursuit of the top performance of the machine, always held firm to provide clients with reasonable prices,excellent quality of machinery, each machine tool design and manufacture of machine with high precision, high performance, nighefficiency, long life as a standard, It has shaped the brand of TaiZheng machine tool and become the symbol of high quality workingmachine.      /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
