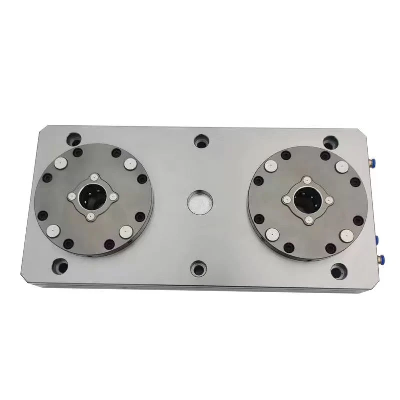

CNC Machine Erowa Zero Point Positioning Precise System

Product Description  Pneumatic Built-in Mounting Type1.Pneumatic unlock;2.Unlock pressure: Q5 min. 6 bar - max. 12 bar Q10 min.5.5bar- max.12bar Q20 min. 4.5bar- max. 12bar;3.Material: hardened stainless steel;4.Surface and piston hardening treatment;5.Repeatableable positioning accuracy < 0.005mm;Features:1.The characteristics of the built-in zero positioner are large tension force and clamping force;2.Compact structure, small installation height;3.Mechanical locking through spring force, air pressure can be unlocked;4.After locking, the pressure source can be cut off without worrying about unstable pressure.Product ParametersID NO.Size NO.Unlock MethodTensioning forceClamping forceDebris RemovalWeightLQNC-5Q5Pneumatic513√0.5LQNC-10Q10Pneumatic1025√1.4LQNC-20Q20Pneumatic1755√2.6LQNC-40Q40Pneumatic40105√4.2Size NO.∅D1∅D2∅D3(H7)∅D4HH1(±0.005)MTQ578185865308.58xM421.5Q1011222789235108xM625Q201383210211549158xM634Q401724012714363188xM845  DetectionCustomer CasePackaging & ShippingCompany ProfileWeifang Runlian Economic and Trade Co., Ltd. was established in 2011,Is a professional domestic high-end machine tool equipment, and accessories import and export enterprise,Including metal cutting machine, metal cutting machine tools, Grinding Machine, Grinding tool,Measuring Tool, Machine function parts, numerical control devices (CNC), Metal forming machine, Lubricating grease, and mechanical processing technology consulting business, adhering to the core value of "customer satisfaction is our purpose", With the core cultural concept of "team, responsibility, communication, tolerance", Take advantage of nearly 20 years of industry experience to provide global customers with the most suitable industry products to create the greatest value, to become a world-class industrial service provider. FAQ1. How To Order?Step 1: please tell us what model and quantity you need;Step 2 :then we will make a PI for you to confirm the order deta;Step 3 : when we confirmed everything, arrange the payment;Step 4: finally we deliver the goods within the stipulated time.2. Delivery TimeSmall Order: in stock normally,deilver goods once payment received.Large Order: 5-7 daysOEM Order: 7-15days3. OEM logo Servicewe supply service of marked logo and wipe off logo, please note wipe logo is a little expensive.4. After-sales ServiceIf you find any defective accessories in the first order, we will give you the new parts for free to replace in the next order,the fact is that our products fraction defective is lower than 1‰./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
