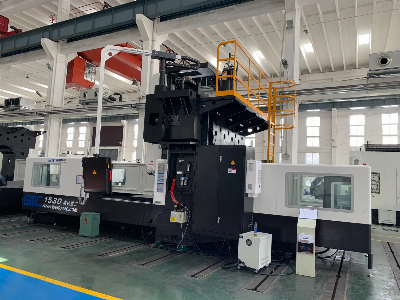

Product DescriptionGMC1630  5Th axis gantry machining center  is a set of machinery, electricity, hydraulic and other advanced technology in one of the mechanical processing equipment, mainly used for mold, CAM, impeller, curved surface processing. Widely used in aerospace, aviation, machinery manufacturing industry all kinds of plate, box, frame and other complex parts of the coarse, precision processing, the machine tool can achieve vertical milling head horizontal (Y axis), vertical movement (Z axis) and work table longitudinal movement (X axis) of the three-axis linkage. It can be used for milling, boring, drilling, rigid tapping, reaming, shaving and other processes. Product Parameters     ItemUnitSpec.MarkMachining rangeWidth of tablemm1500 Length of tablemm2000 Max. Load of tablekg6000 Effective width of gantrymm1900 Max. Height of the gantrymm900 Distance between vertical spindle to table surfacemm150~950 Table travelMax. Travel of Xmm2200 Max. Travel of Ymm2000 Max. Travel of Zmm800 Spindle Item Standard    (First grade synchronous belt)Optional(With  gear box)Motor powerkW15/18.515/18.5Speed rangerpm32003200Rated torqueN.m257570Max. torqueN.m318700Max. broachN1800018000Table system(X)Structure type Table movement Guideway type Heavy linear guide rail pairRGH55Quantity of rail pairset2 Transmission form  Direct Reduction ratio 1:1 Drive unit Ball screw pairR63-16-FDCSaddle system(Y)Structure type Saddle movement Guideway type Heavy linear guide rail pairRGH55Quantity of rail pairset2 Transmission form   Direct Reduction ratio 1:1 Drive unit Ball screw pairR50-16-FDCSlide system(Z)Structure type ram movement Guideway type Rectangle plastic-surface guideways pair Quantity of rail pairset  Transmission form  Direct Reduction ratio 1:1 Drive unit Ball screw pairR50-12-FDCRapid feed speedXmm/min15000  Ymm/min15000  Zmm/min12000 Cutting feed speed rangeX,Ymm/min1-10000 Zmm/min1-8000 Positioning accuracy of linear axis(GB/T19362.1-2003)Xmm0.025Half closed-loop controlYmm0.022Zmm0.025Repeat Positioning accuracy of linear axis(GB/T19362.1-2003)Xmm0.015Half closed-loop controlYmm0.013Zmm0.015Working accuracyFine boring surface roughness ≤Ra1.6HB230~260 Steel Fine milling surface roughness ≤Ra3.2Working EnvironmentTemperature 0ºC-40ºC VlotageV380(-15%,+10%) Power frequencyHz50±1% Relative humidity ≤90% Compressed air pressure MPa0.5~0.7 Cnc systemModel FANUC 0i-MF Plus The total number of control axisAxes3 Linkage control axis numberAxes3(Linear axis) Tool change systemTaper BT50 Tool magazine arm type tool magazine with 24 tools Max. Weight of toolkg25 Max. Length of toolmm350 Auxiliary functionLubrication type of guideway pair/ball screw pair automatic centralized lubrication  Operation panel suspension type Operation type of manual tool change Control by button Status indication Three-colour warning lamp Cooling type of tool/workpiece Liquid external cooling Overall dimensionLengthmm7500 Widthmm4300 Heightmm4700 Machine weight (about)kg23000   Features: 1.Using gantry frame structure, running more smoothly, improve the rigidity of the machine tool. 2.Suitable for all kinds of aluminum, copper, PVC, industrial profiles and other complex parts processing. Can achieve a workpiece clamping automatically completed milling, drilling, tapping and other multi-process processing.3.Imported well-known brands, easy to operate high-end CNC control system from Italy.4.The use of high-quality imported servo motor, ball screw, linear guide and other bearings and other institutions to ensure that the equipment has a high processing accuracy. High stability, reliability. The feed movement is pre-stretched to ensure the stability of the machining accuracy.5.The machine adopts the imported five-axis milling head to finish the processing at any angle on the other side of the bottom surface. Optional vertical disc 8-bit magazine.6. The use of quantitative timing of the central centralized automatic feed lubrication to ensure the stability of the machine accuracy.7. Use pneumatic clamping table to improve loading and unloading speed. Optional T-type table.8. The use of imported Renishaw interferometer detection, compensation for the accuracy of the machine.9.   Use safety protection to ensure safety.Detailed Photos    Company ProfileWeifang Runlian Economic and Trade Co., Ltd. was established in 2011,Is a professional domestic high-end machine tool equipment, and accessories import and export enterprise, Including metal cutting machine, metal cutting machine tools, Grinding Machine, Grinding tool, Measuring Tool, Machine function parts, numerical control devices (CNC), Metal forming machine, Lubricating grease, and mechanical processing technology consulting business, adhering to the core value of "customer satisfaction is our purpose", With the core cultural concept of "team, responsibility, communication, tolerance", Take advantage of nearly 20 years of industry experience to provide global customers with the most suitable in
