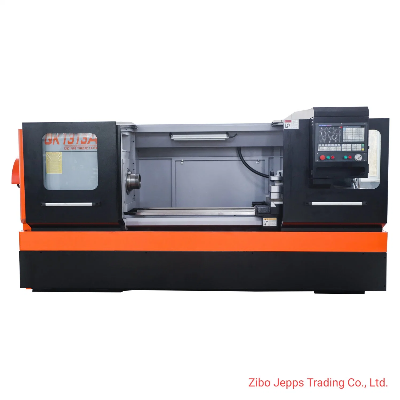

CNC Oil Country Threading Tube Thread Lathe Qk1319

  1. Two-speed speed change, wide speed regulation range, not only meets the requirements of high-speed thread finishing, but also has high cutting efficiency and low noise.2. The machine bed is an integral floor structure, which greatly improves the rigidity of the machine tool. The width of the guide rail surface of the bed is wide, and has been quenched and precision ground by super audio frequency.3. Quenching precision grinding gears and high-quality bearings to ensure low noise and good sound quality of the machine tool.4. The spindle box adopts powerful external circulation cooling and lubrication, which not only reduces the temperature rise of the spindle, but also maintains the cleanliness and lubrication of the spindle box.5. The X and Z axes are directly driven by high-precision ball screws and pre-stressed and tightened, and the nut hanger is an integral structure.6. The large-size 4-station vertical electric turret enables the machine tool to have high processing efficiency and more effectively ensure the precision of the inner hole thread of the fine turning.SpecificationModel and specificationsQK1319Guideway width550 mmMax. swing over bed630mmMax. swing over carriage350mmHole through spindle200mmMax. processing Pipe diameter196mmMax. workpiece length1500/3000 mmRange of spindle speed changes(r/min)24~300Tool post styleVertical 4 StationsKnife rest translocation time(S)3SRepeated positioning accuracy±0.002Processing workpiece precisionIT7Bed quenching hardnessHRC52Workpiece surface roughnessRa1.6Power of main motor7.5/11kwNC systemGuangtai130IT/Guangshu980TA2(According to customer's requirement )Chuck 500   3-jawPacking and DeliveryOur transportation methods are various, including sea, air, land transportation, etc. After the customer places an order, we often choose the fastest and most convenient transportation method according to the customer's needs. If the customer has special needs for the transportation method, we will also Customized services are also supported.Why choose us ?1. Compared with other factories, casting material which produced by our company independently is really better than the others. 2.one year guarantee for whole machine .3.24-hours technical support by E-mail or telephone4.Provide extra accessories for the machine5.Also provide service of make program according to your drawings6.Customized or special design is OK.Company Profile/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
