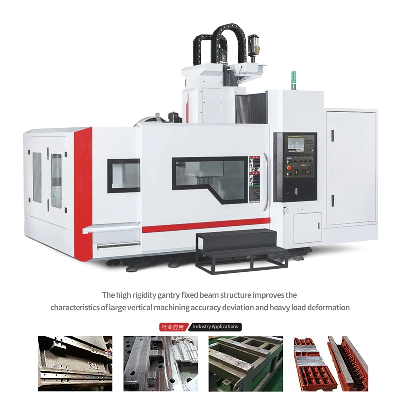

Three-Axis CNC Precision Machining Heavy-Duty Gantry Fixed Beam Machining Center

   GMC1816 Three-axis CNC Precision Machining Heavy-duty Gantry Fixed Beam Machining Center Product Description          A mobile gantry machining center machine tool, suitable for machining equipment for various large workpieces in aerospace, shipbuilding, power generation, construction machinery, locomotives, machine tools, textile machinery, printing machinery, molds and other industries. The high-strength, high-rigidity design of the machine tool and the structure of the large-flow shoulder channel have the characteristics of high precision, high efficiency, flexibility, and environmental protection.Product ParamentersItemUnitGMC-1614GMC-1816GMC-2014GMC-2515GMC-3018Journey      Three-axis travel (X/Y/Z)mm1600/1600/7501800/1800/8002000/1600/7502500/1700/8003000/2000/800Distance from spindle nose to work tablemm250-1000200-1000250-1000200-1000200-1000distance between two columnsmm14001600140015001800Workbench      Table size (length X width)mm1800X12002000X14002200X12002700X13003100X1700Maximum loadkg50006300600075009500Number of T-slots X Slot Width X Spacing 7X22X1809X22X1607X22X1807X22X1709/22/180Spindle      Spindle speedrpm1200060001200060006000Spindle taper hole BT40BT50BT40BT50BT50Spindle motor powerkw11/1515/18.511/1515/18.515/18.5Spindle maximum output torqueNm52.5/118143/23652.5/118143/236143/236Speed      Rapid traverse speed (X/Y/Z axis)m/min24/24/2424/24/1224/24/2424/24/1212/24/12Cutting feed ratem/min10/10/1010/10/1010/10/1010/10/1010/10/10Tool magazine      Number of toolspcs2424242424Tool diameter/length/weight Ф75mm/300mm/7kgФ112mm/350mm/15kgФ75mm/300mm/7kgФ112mm/350mm/15kgФ112mm/350mm/15kgThe maximum diameter of the tool (full knife / adjacent empty knife)mm75/150112/20075/150112/200112/200Machine tool accuracy      Positioning accuracy (X/Y/Z)mm0.020/0.020/0.0120.020/0.020/0.0150.020/0.020/0.0120.025/0.020/0.0150.025/0.020/0.015Repeated positioning accuracy (X/Y/Z)mm0.009/0.009/0.0080.009/0.009/0.0080.009/0.009/0.0080.012/0.009/0.0080.012/0.009/0.008Other      Air source/air pressure 280L/min6-8bar280L/min6-8bar280L/min6-8bar280L/min6-8bar280L/min6-8barTotal capacity of machine toolsKVA3545354545Tank volumeL370370370420450Machine tool dimensions (X/Y/Z)mm5400X3700X39005800X3900X45002800/3700/39007000X3900X45008200X4100X4500Machine Weight (Approx.)kg1300014500150002450028000 /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
